ADD KEY NUMBERS & CYLINDERS
No Audio

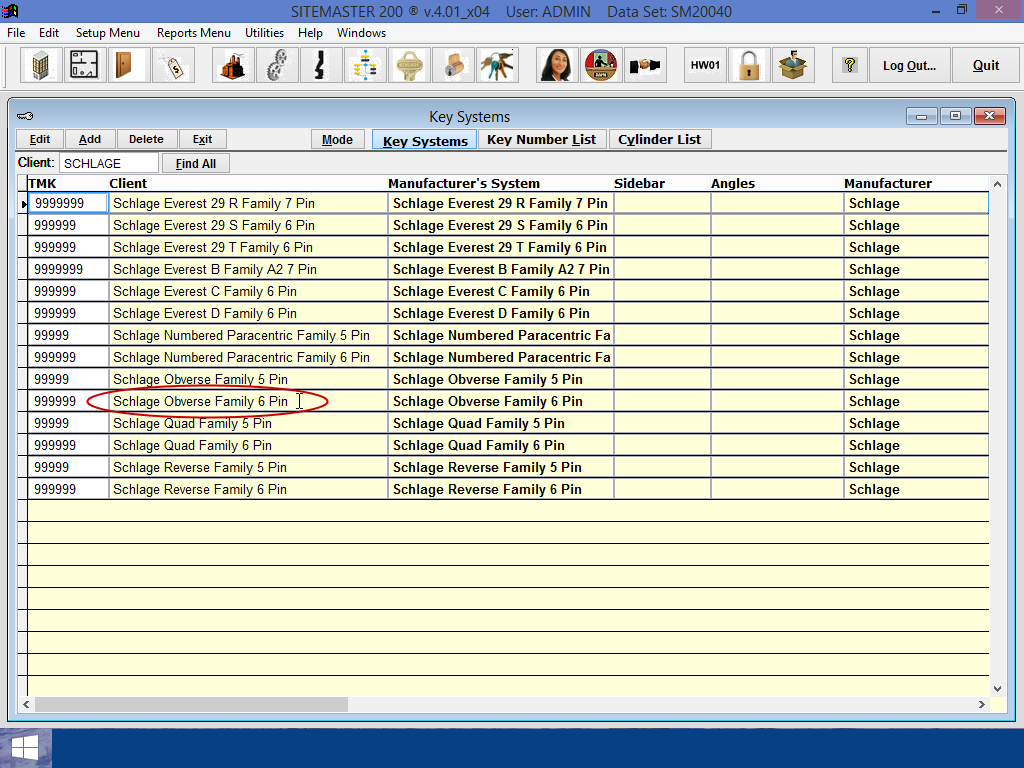

Go to Key Systems.
Look up the Key System
to add your key numbers
and cylinders.
Like visualizing a flow chart, you first add
your Master Keys starting with the Top
Master Key and working your way down.

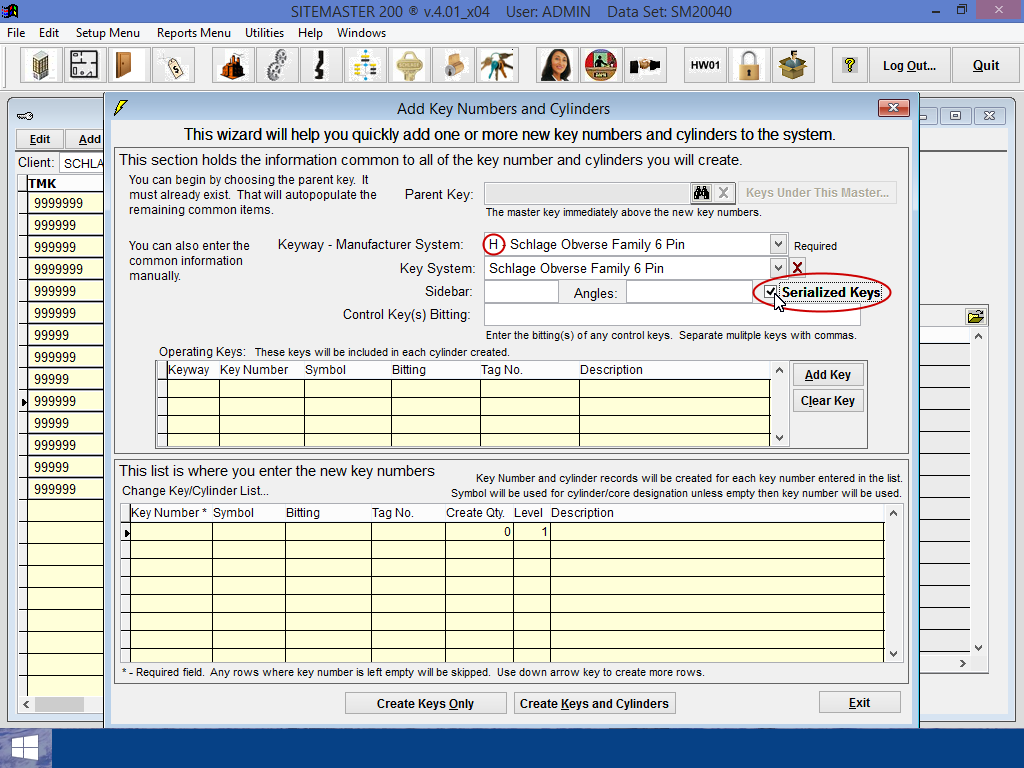

In this system, we will select the "H"
keyway for the TMK, and all keys will be
serialized.
CONTINUE
Only the Key Number is actually
required, but if you can, we
recommend that you also enter the
Bitting and the Level at this time.
CONTINUE
When entering Master Keys,
assign a level of 2 or greater. Level
1 is only for Change Keys
CONTINUE
When adding Master Keys, you can
click the Create Keys Only button, so
Cylinder/Cores are not added for
these. However, I decided to add
Cylinder/Cores for the Master Keys as
well, just in case I need to assign a
Cylinder/Core to a door that's keyed
just to master keys.
CONTINUE
We start building this System by
looking up the A Grand Master
that we just added. This
becomes the Parent Key.
CONTINUE

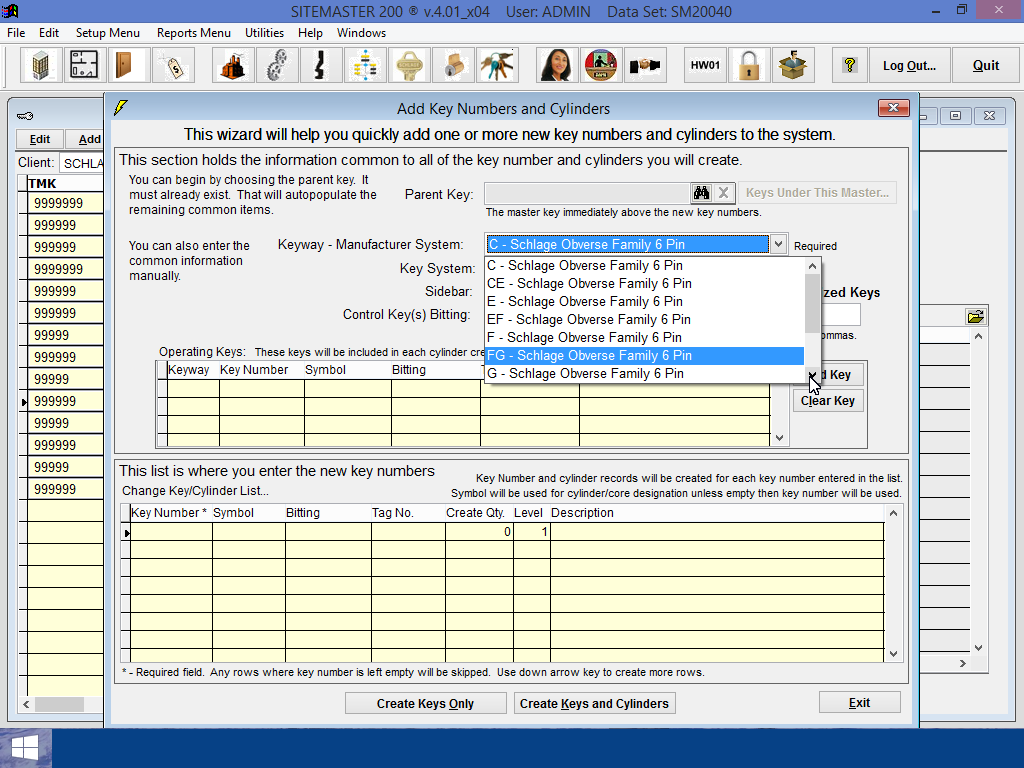

The Grand Master A is the
Parent Key, and we've
selected keyway C for the
rest of the keys to be added.
CONTINUE

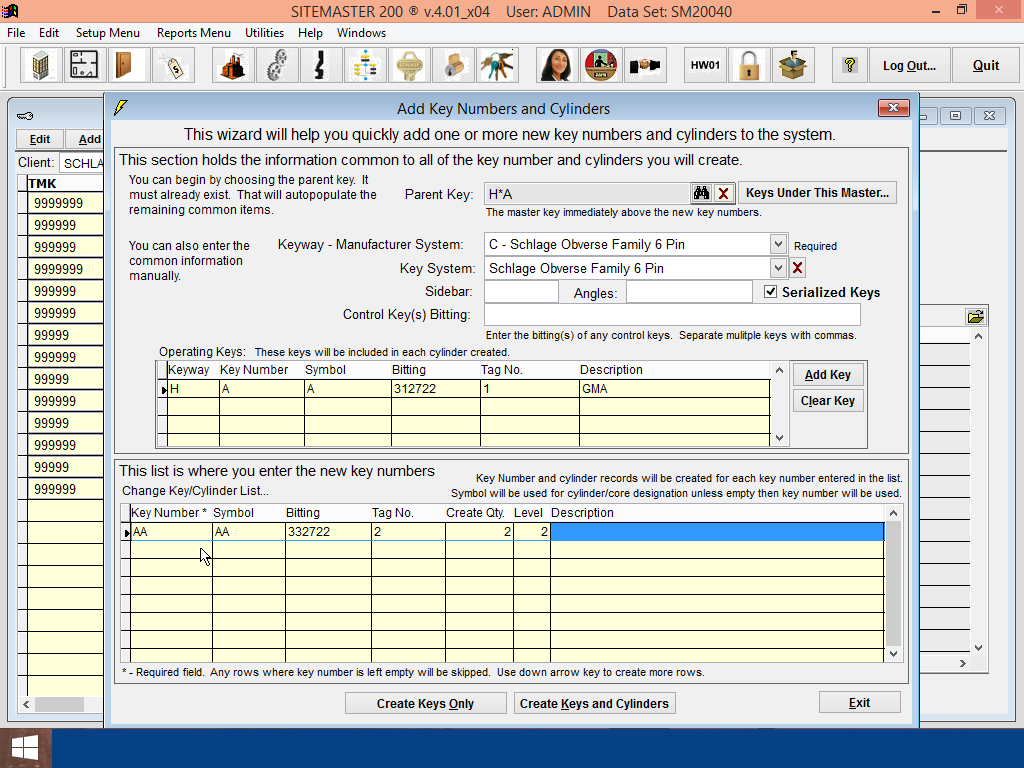

We now have entered the Master Key
AA at Level 2, under the A Grand
Master (Parent). You can enter
multiple keys at the same level, so
you can enter any other MKs such as
AB, AC, AD, etc.. For this example, we
will only add the AA.
CONTINUE
Now, we'll look up the AA
master key, so that it's
the Parent Key.
CONTINUE

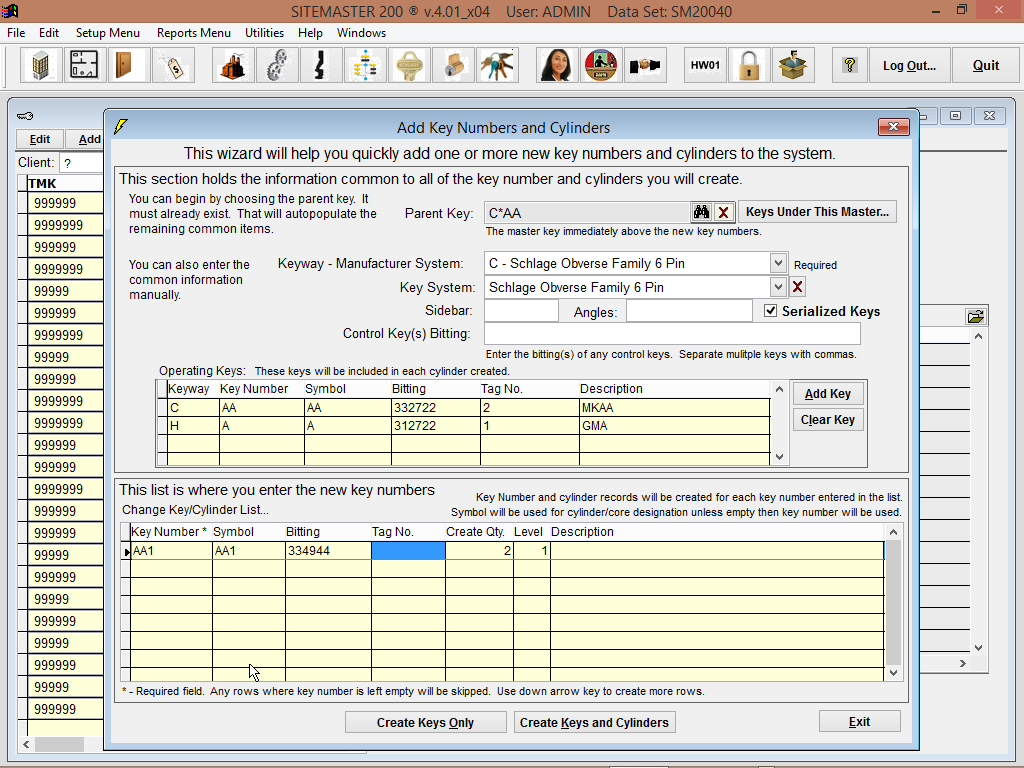

I will now enter Change
Keys under the master
key AA.
By setting up these parent-child
relationships for your keys, the
program automatically adds the
Operating Keys to the Cylinder/Core
records.
CONTINUE
The Keys Under This
Master screen, displays
all keys that have already
been added.
This screen lets you know
what you've already
entered, so you can
continue where you left off.
Let's check our work!
Master Keys added!
The Key Numbers are
added!
And, the Cylinder/Cores!
Let's jump to the records.
The AA1 cylinder/core
record.
Success!
For more information about this
feature, go to SiteMaster's built-in
Help Manual topic, The Add Key
Numbers & Cylinders Wizard.
