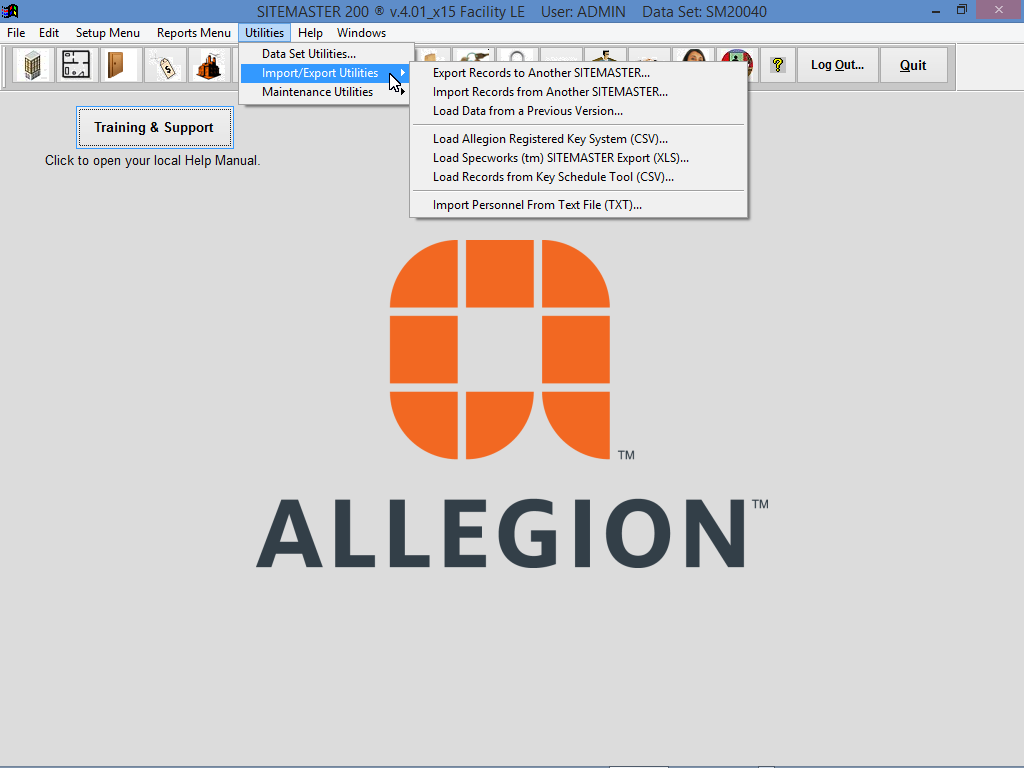

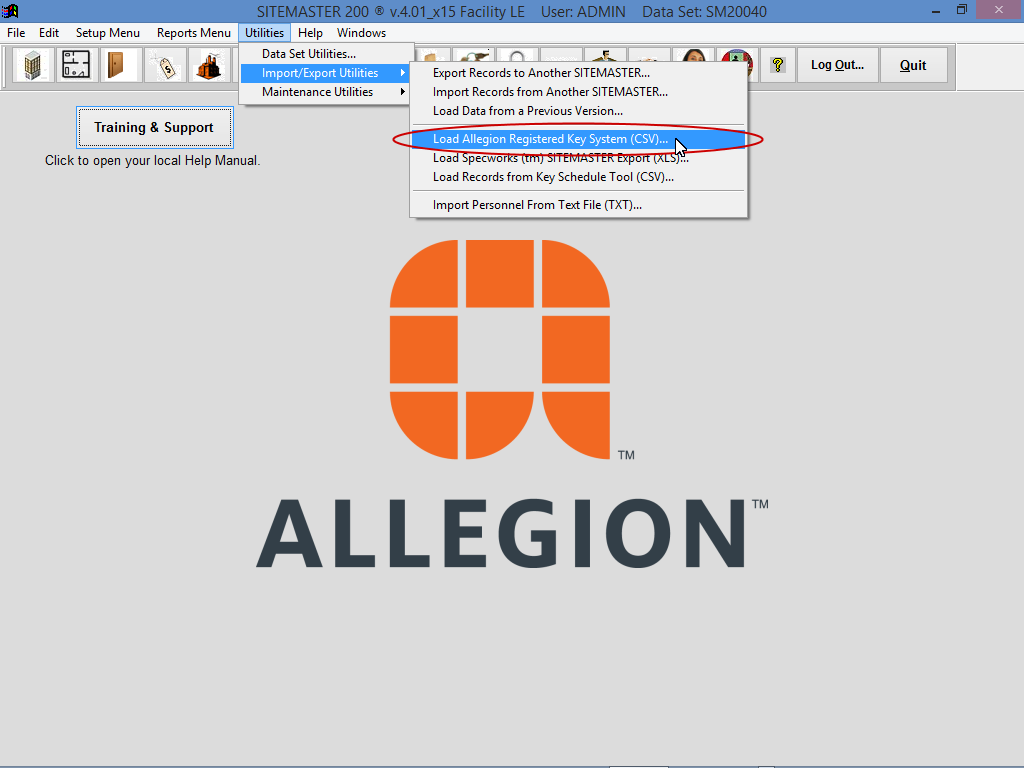

LOAD ALLEGION REGISTERED KEY SYSTEM
Importing Keys and Cores from the Factory
No Audio

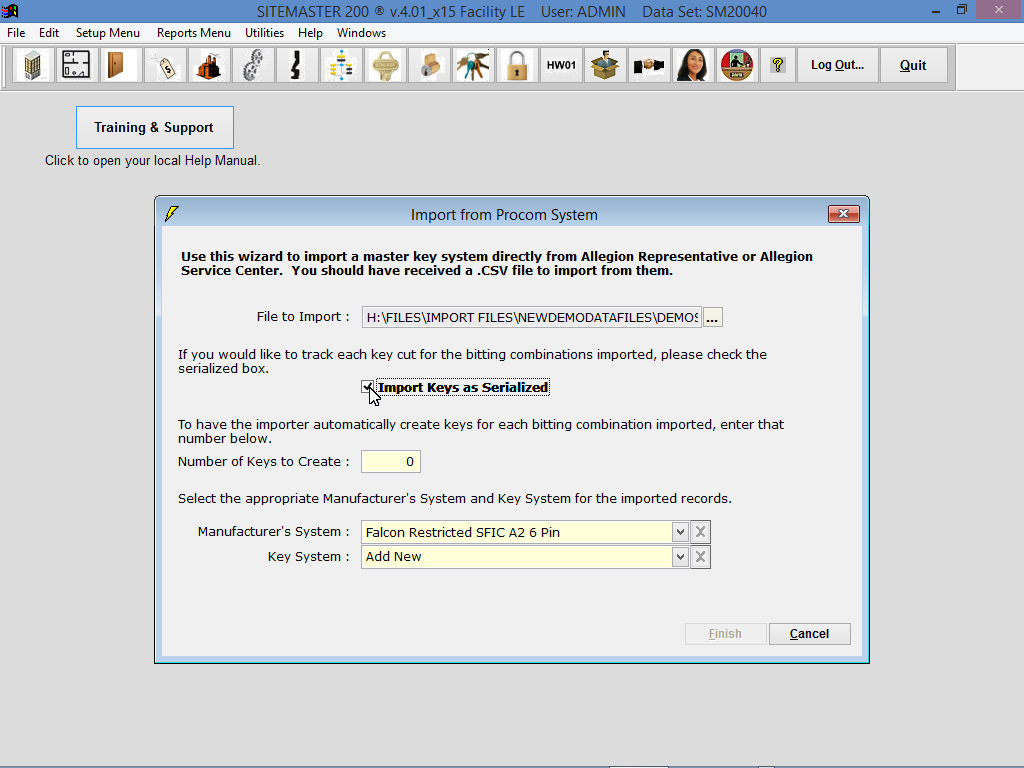

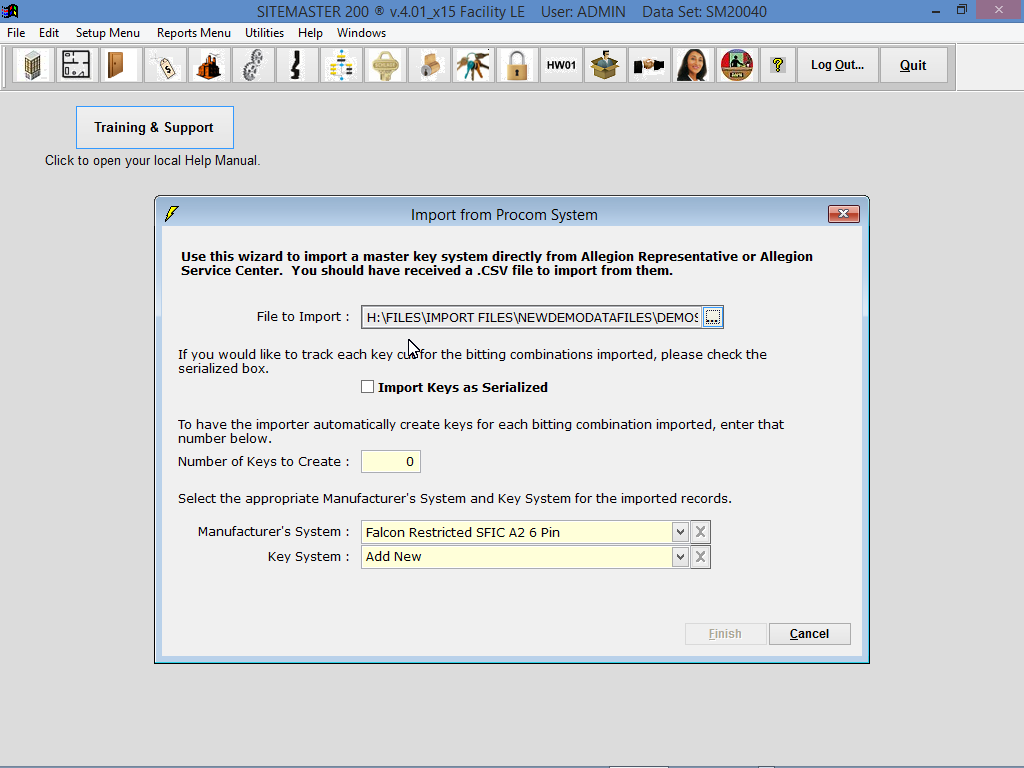

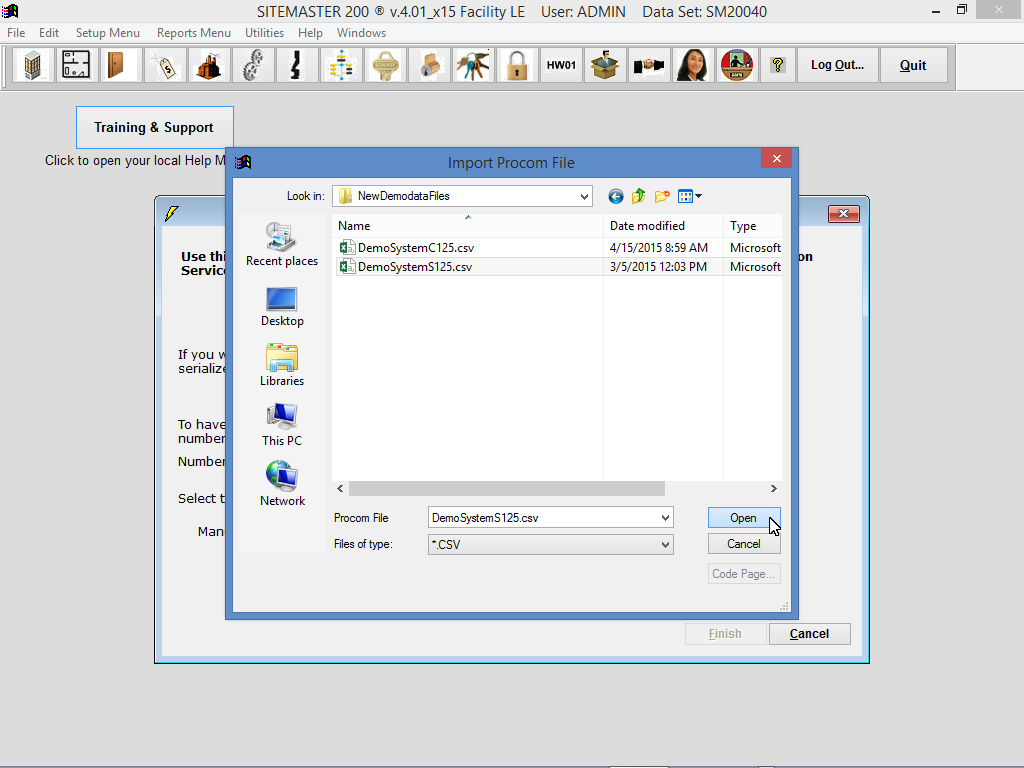

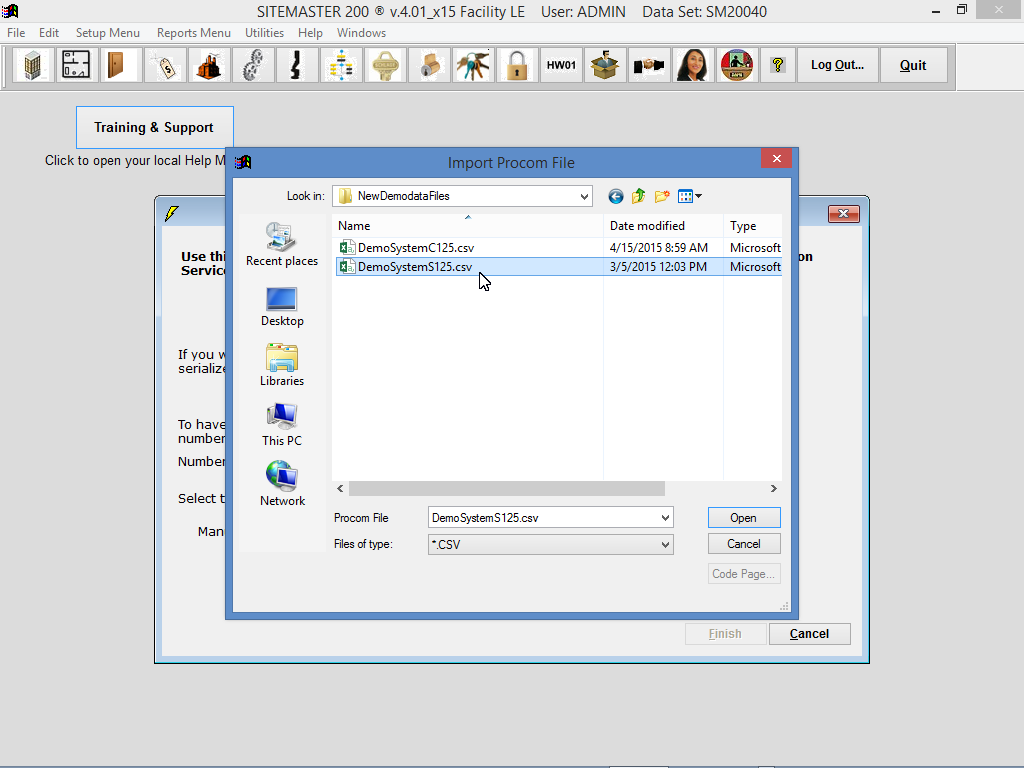

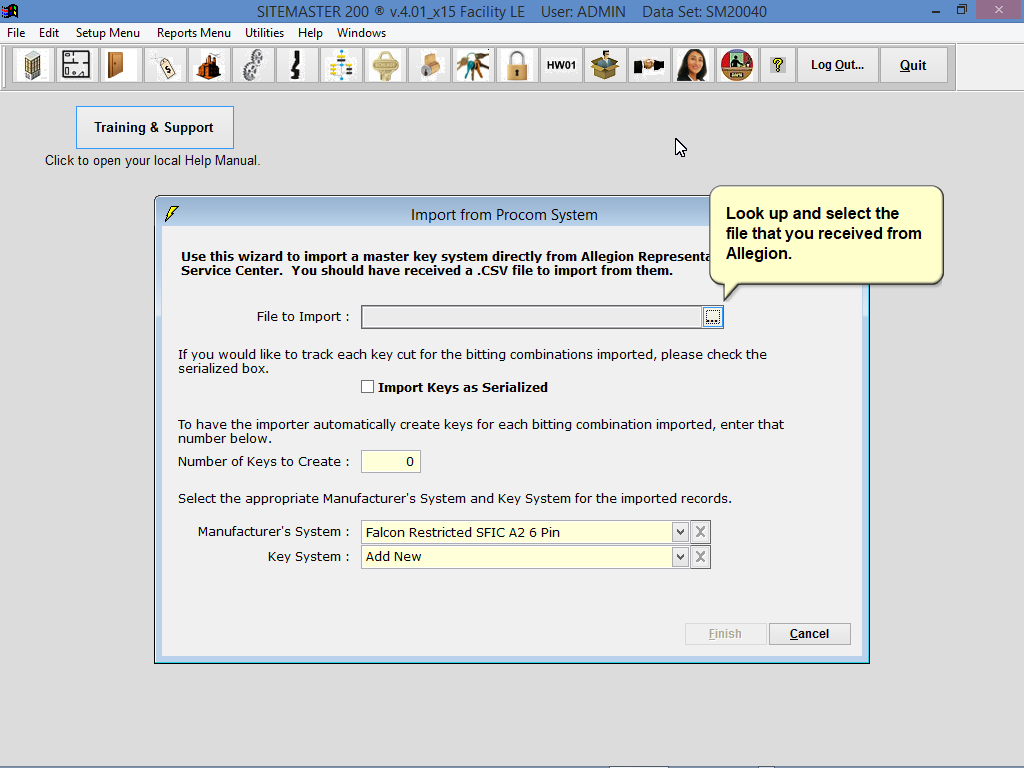

Look up and select the
file that you received from
Allegion.

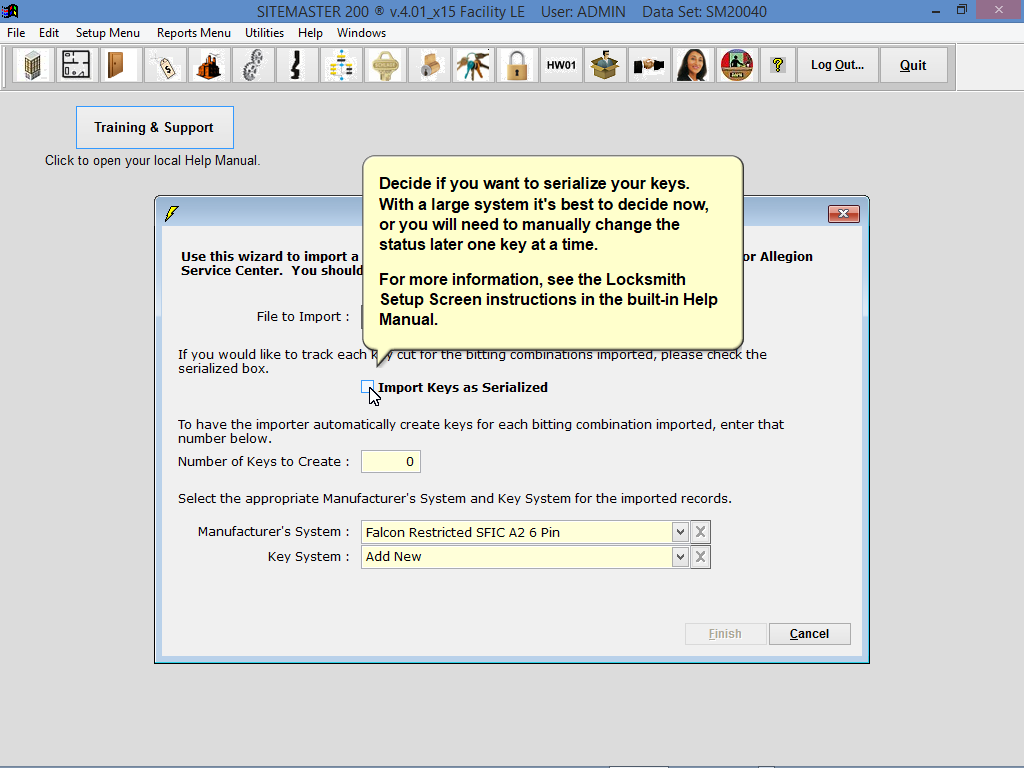

Decide if you want to serialize your keys.
With a large system it's best to decide now,
or you will need to manually change the
status later one key at a time.
For more information, see the Locksmith
Setup Screen instructions in the built-in Help
Manual.

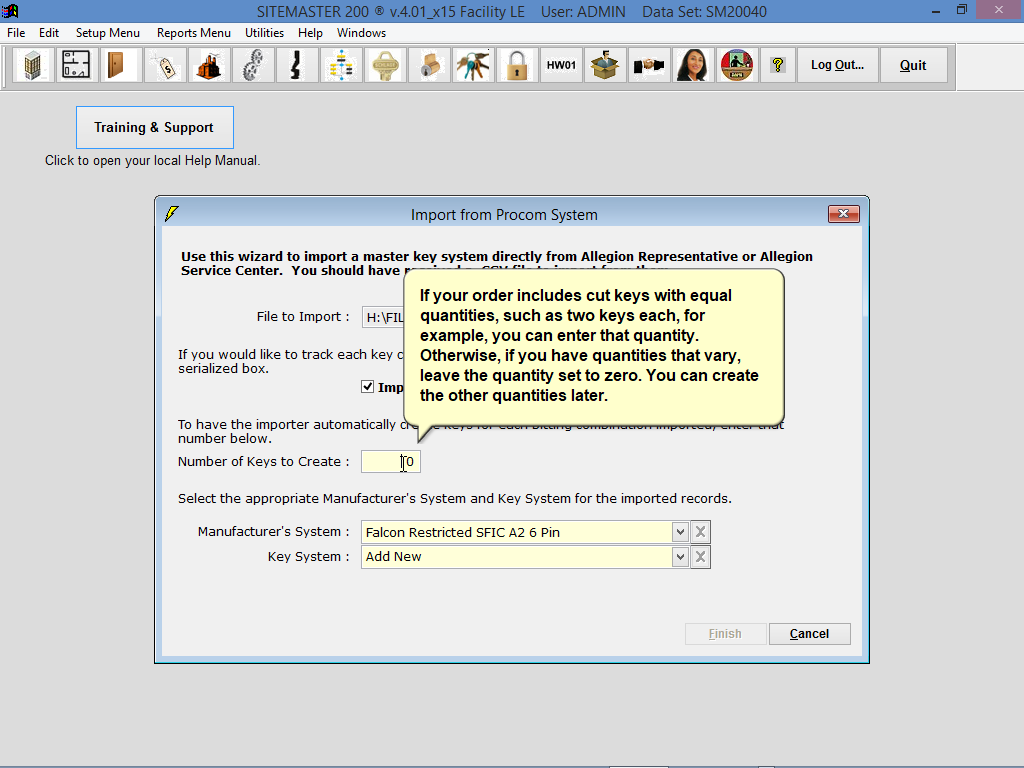

If your order includes cut keys with equal
quantities, such as two keys each, for
example, you can enter that quantity.
Otherwise, if you have quantities that vary,
leave the quantity set to zero. You can create
the other quantities later.

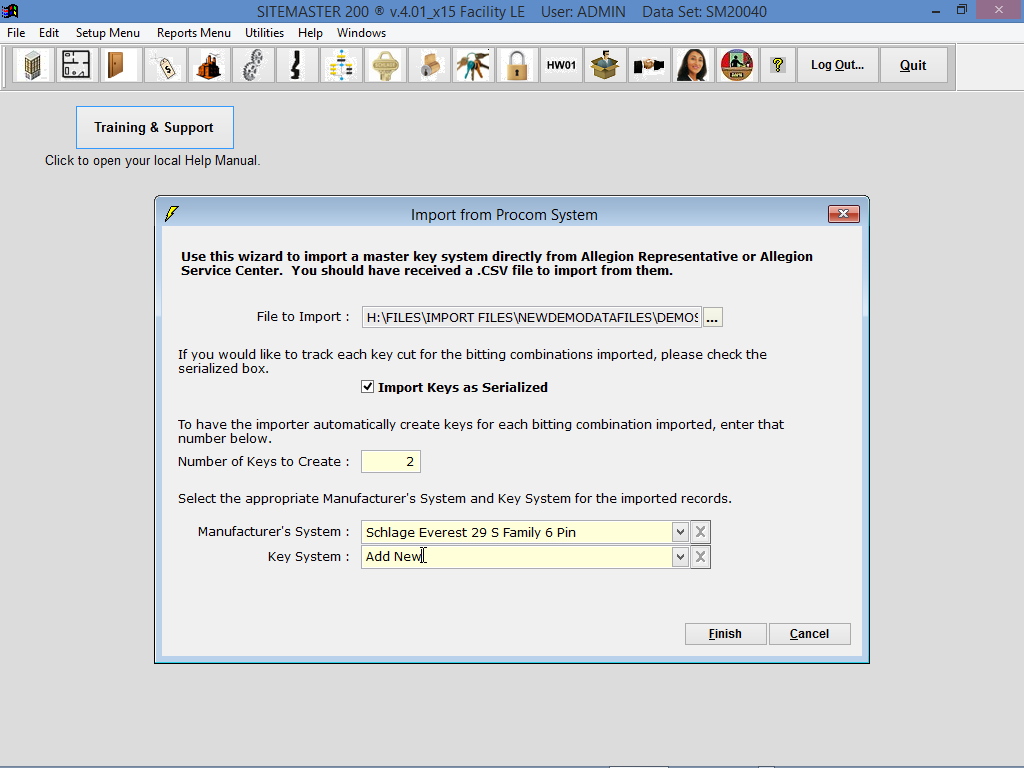

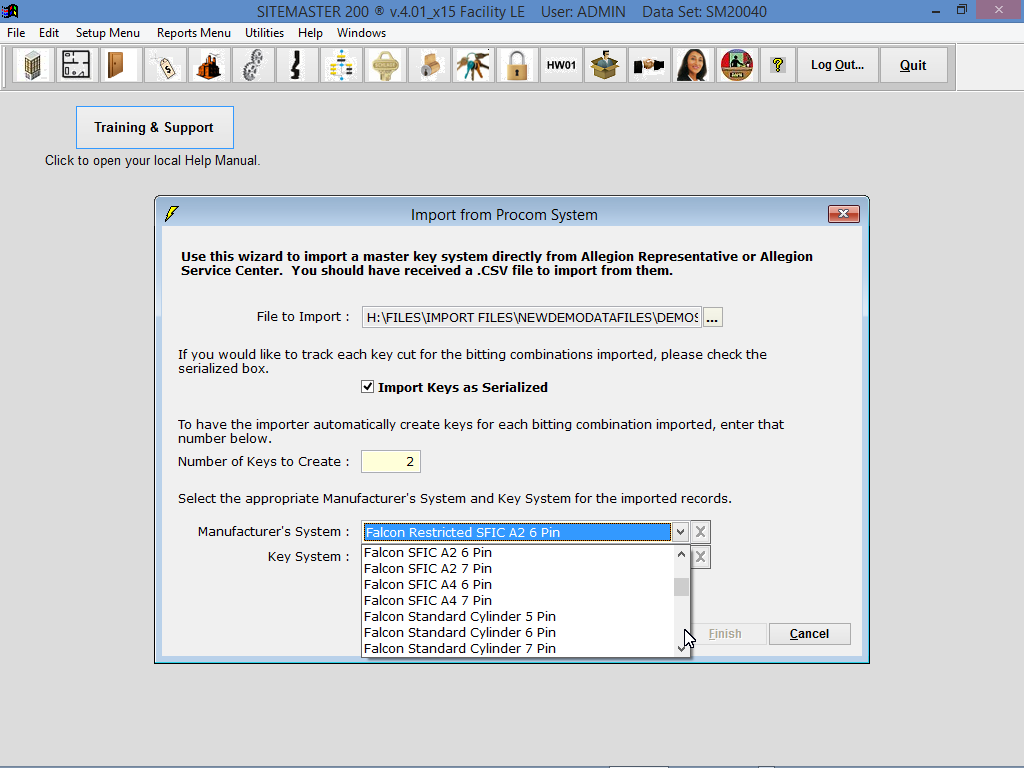

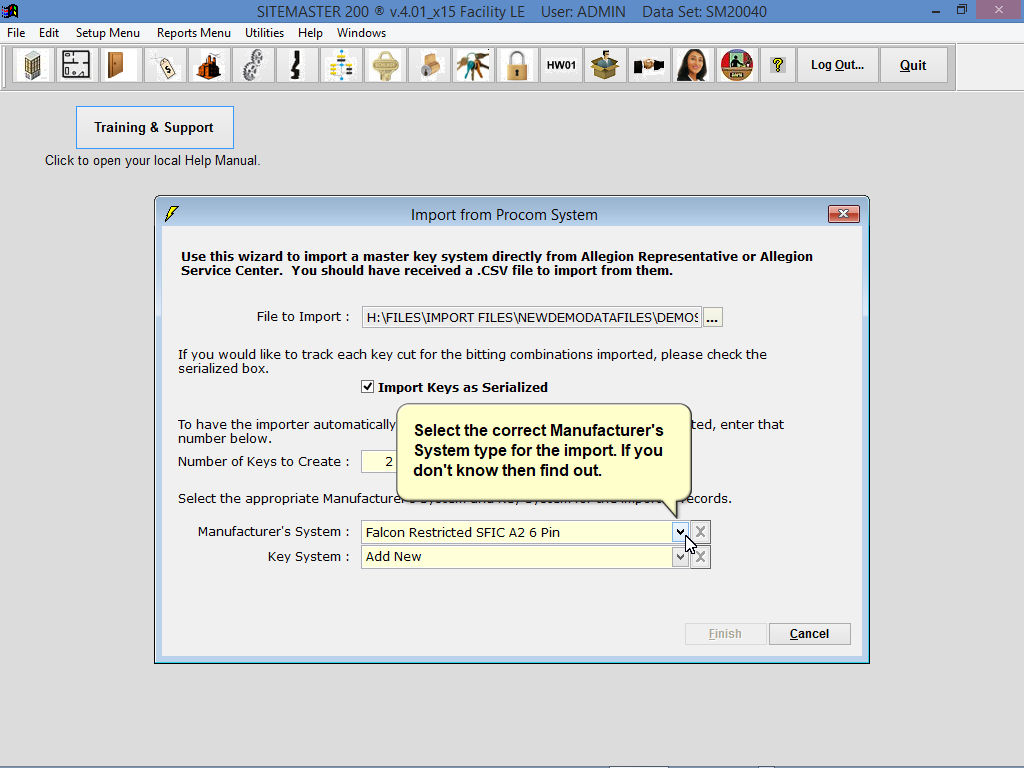

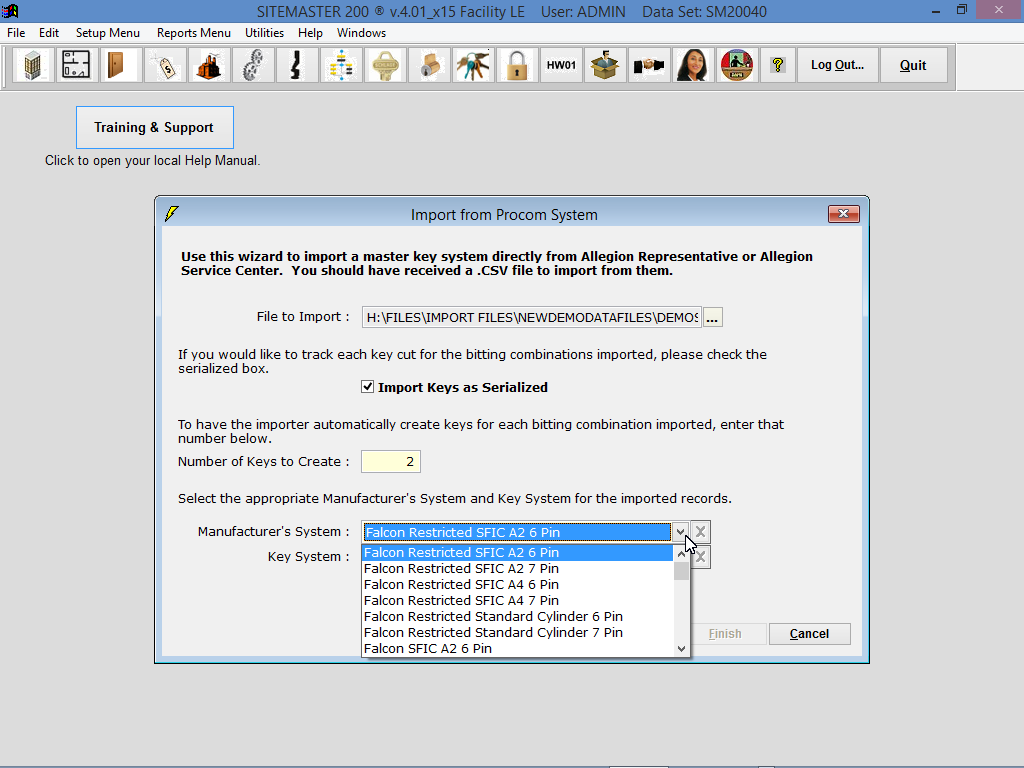

Select the correct Manufacturer's
System type for the import. If you
don't know then find out.

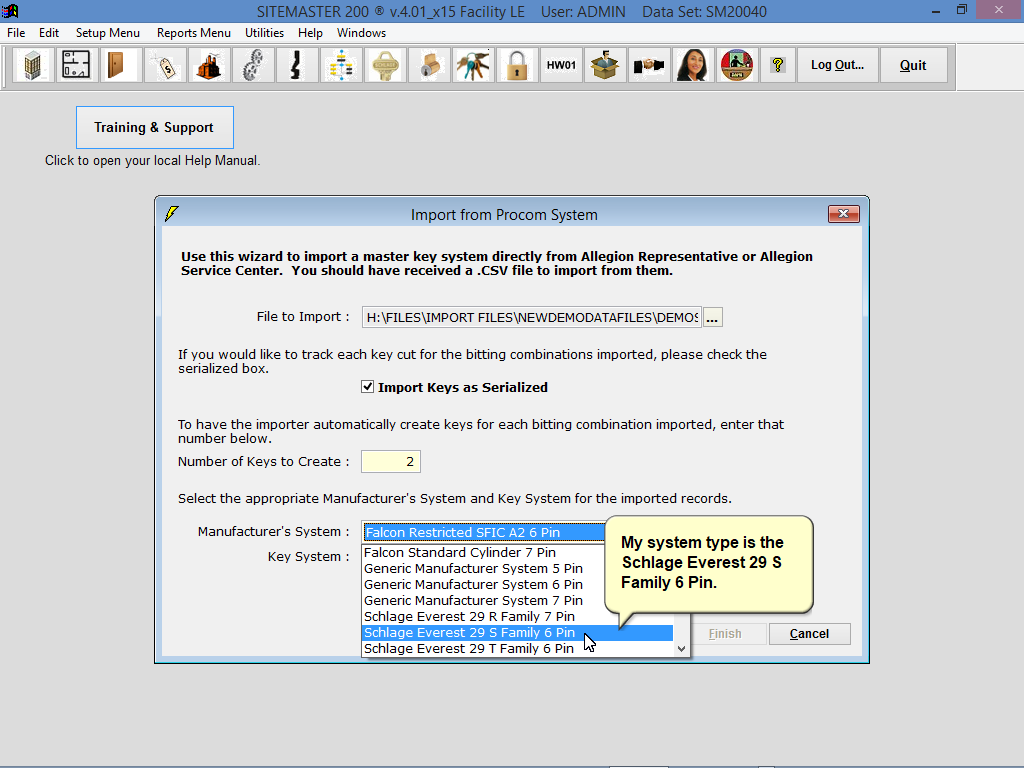

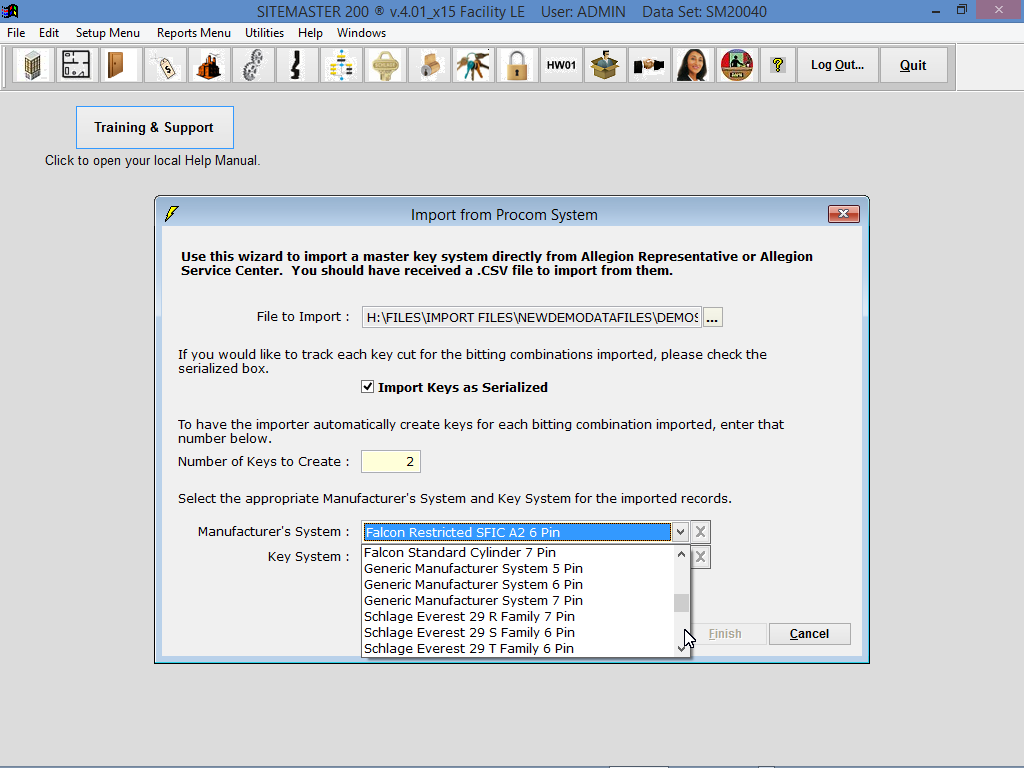

My system type is the
Schlage Everest 29 S
Family 6 Pin.
if this is your first import, you need to provide
a name for the new Key System that gets
loaded. Full Version users should be careful
to spell the name correctly, because you
cannot edit the name later.

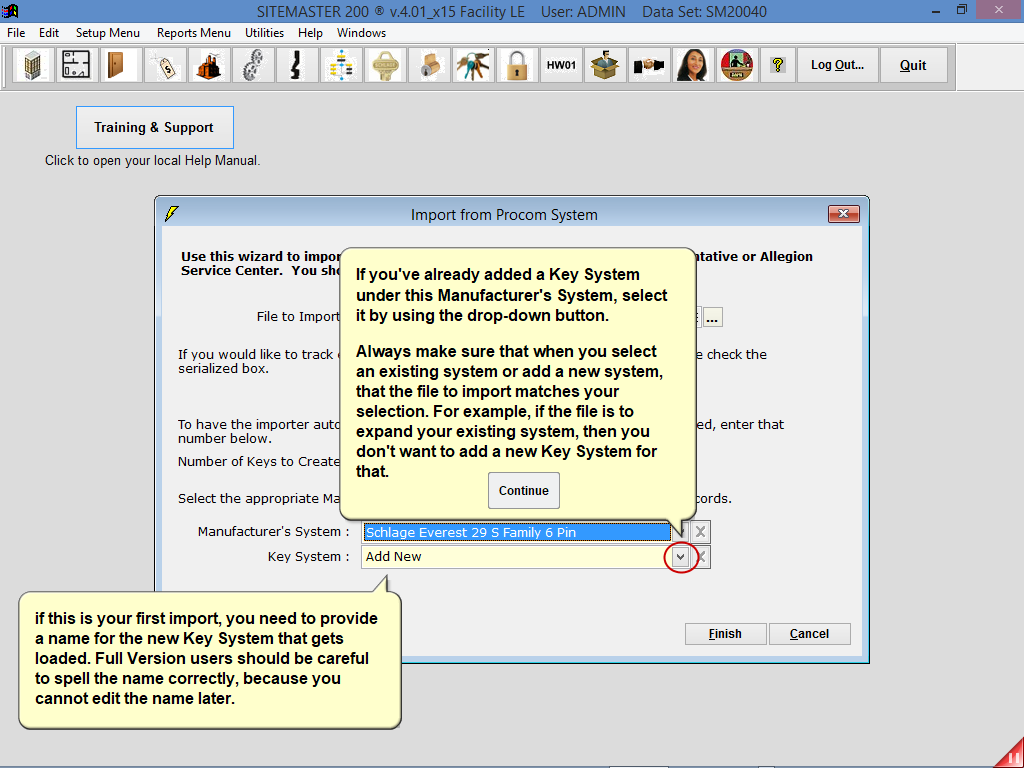

If you've already added a Key System
under this Manufacturer's System, select
it by using the drop-down button.
Always make sure that when you select
an existing system or add a new system,
that the file to import matches your
selection. For example, if the file is to
expand your existing system, then you
don't want to add a new Key System for
that.
Continue

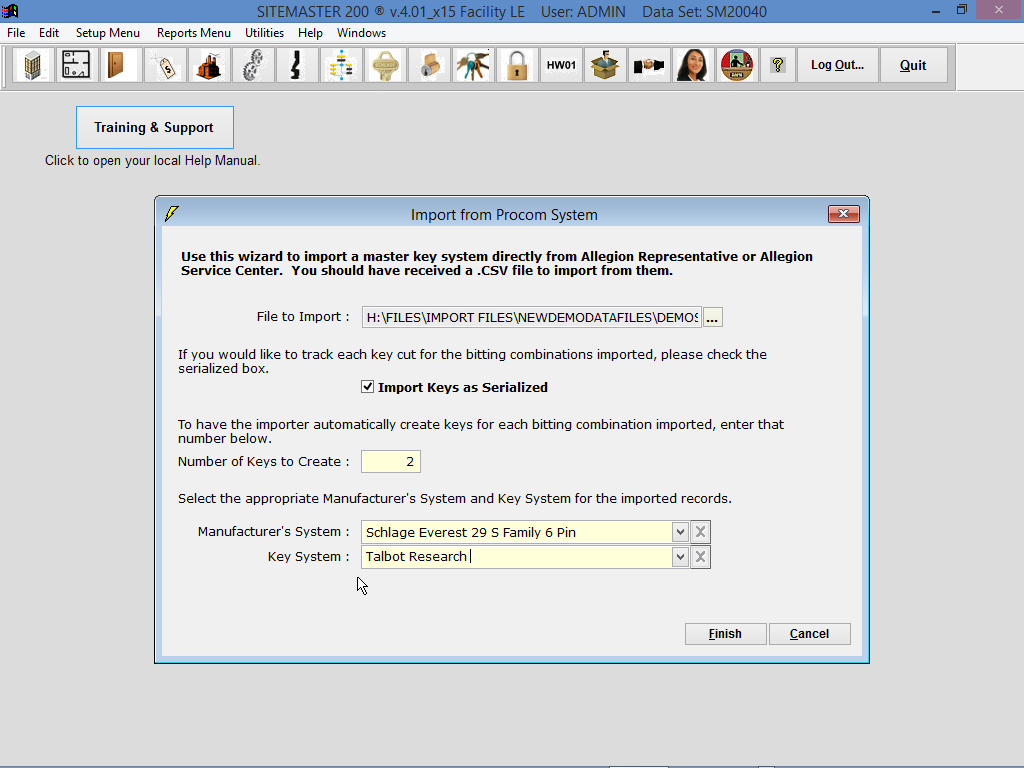

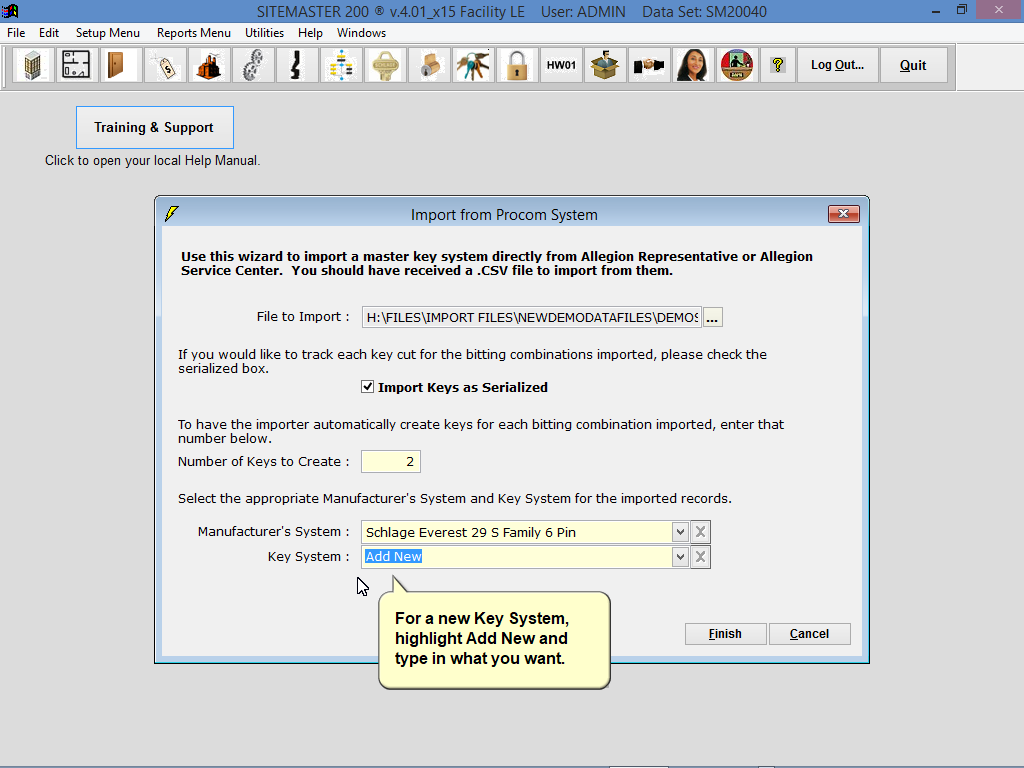

For a new Key System,
highlight Add New and
type in what you want.

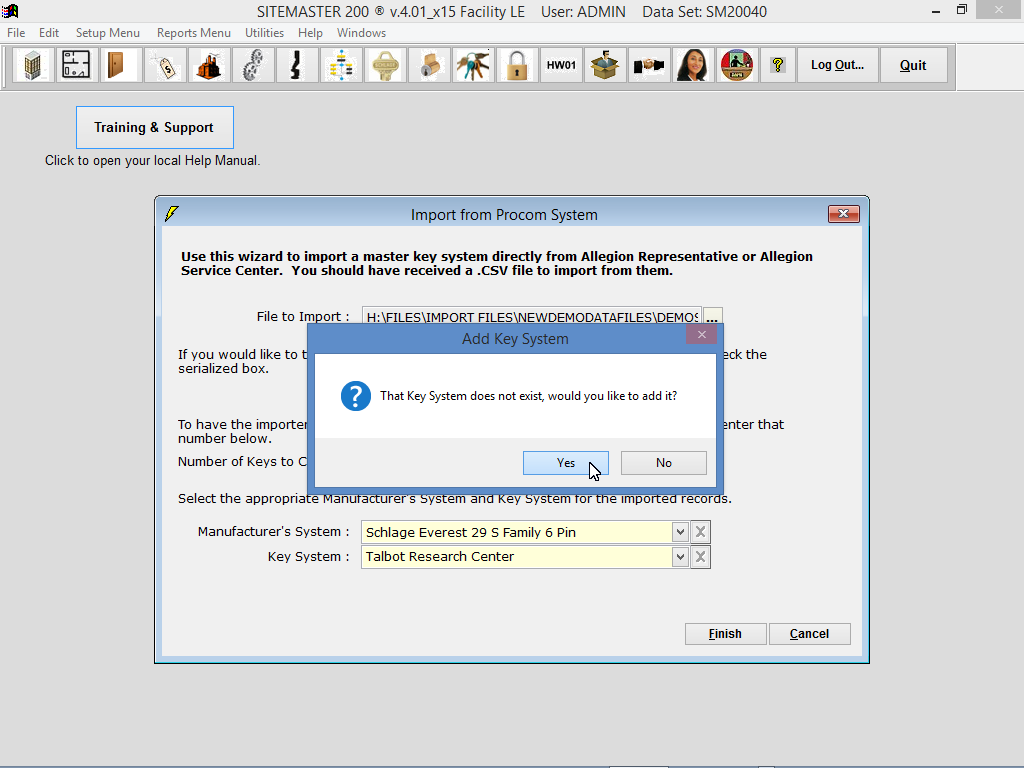

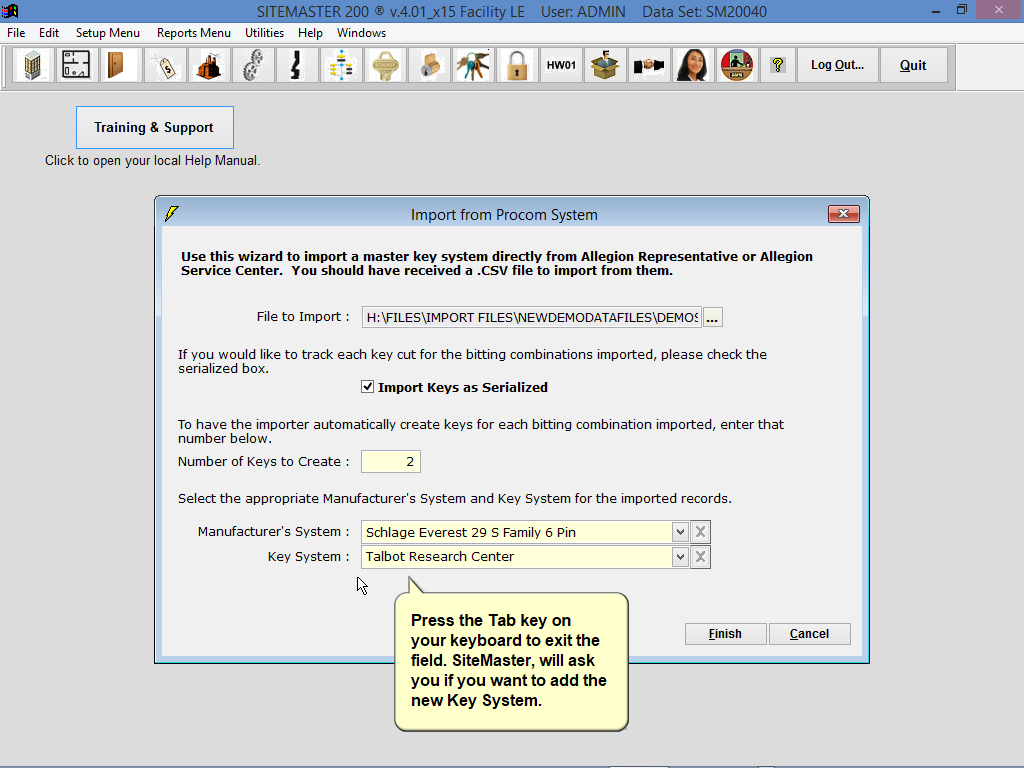

Press the Tab key on
your keyboard to exit the
field. SiteMaster, will ask
you if you want to add the
new Key System.

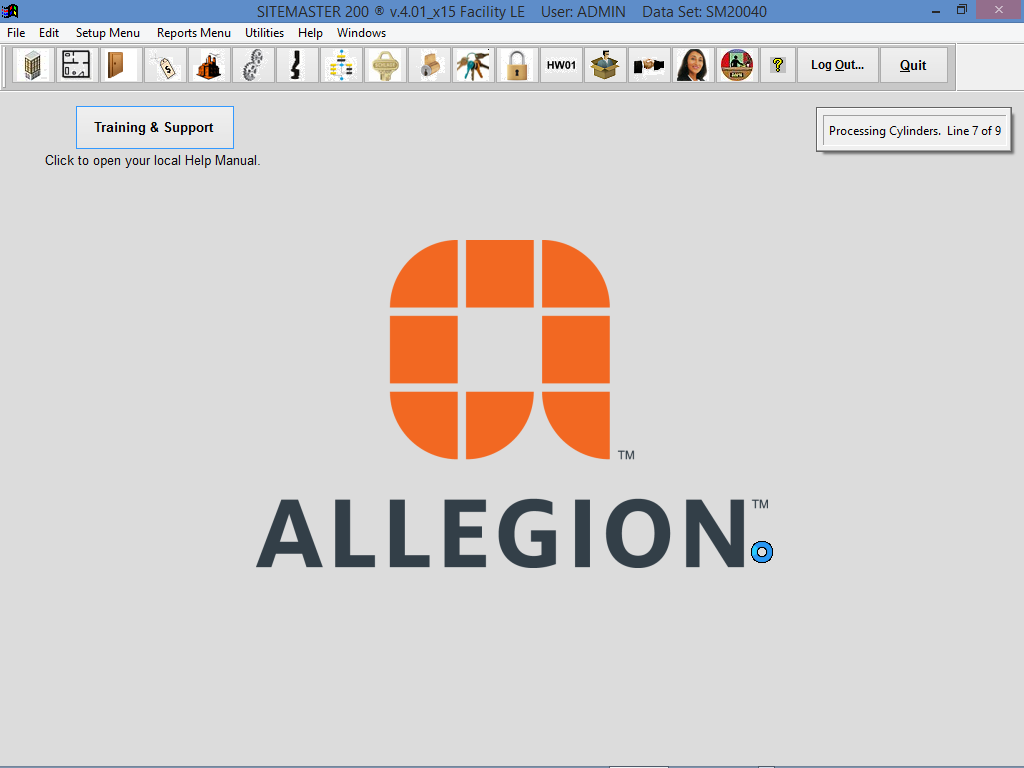

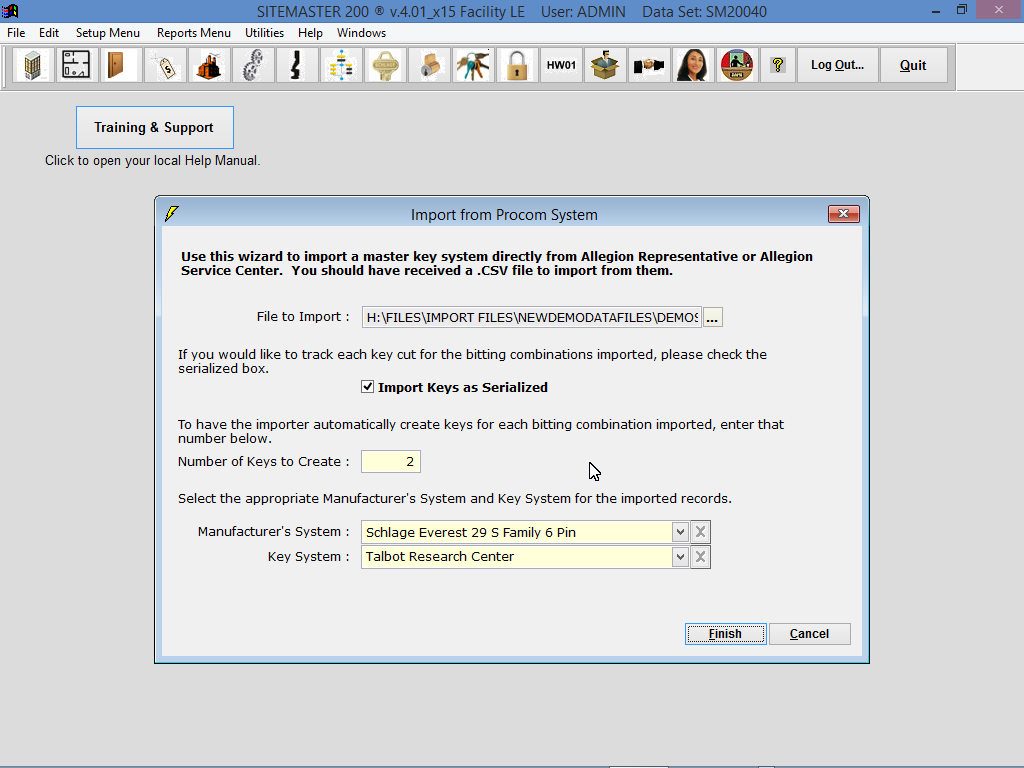

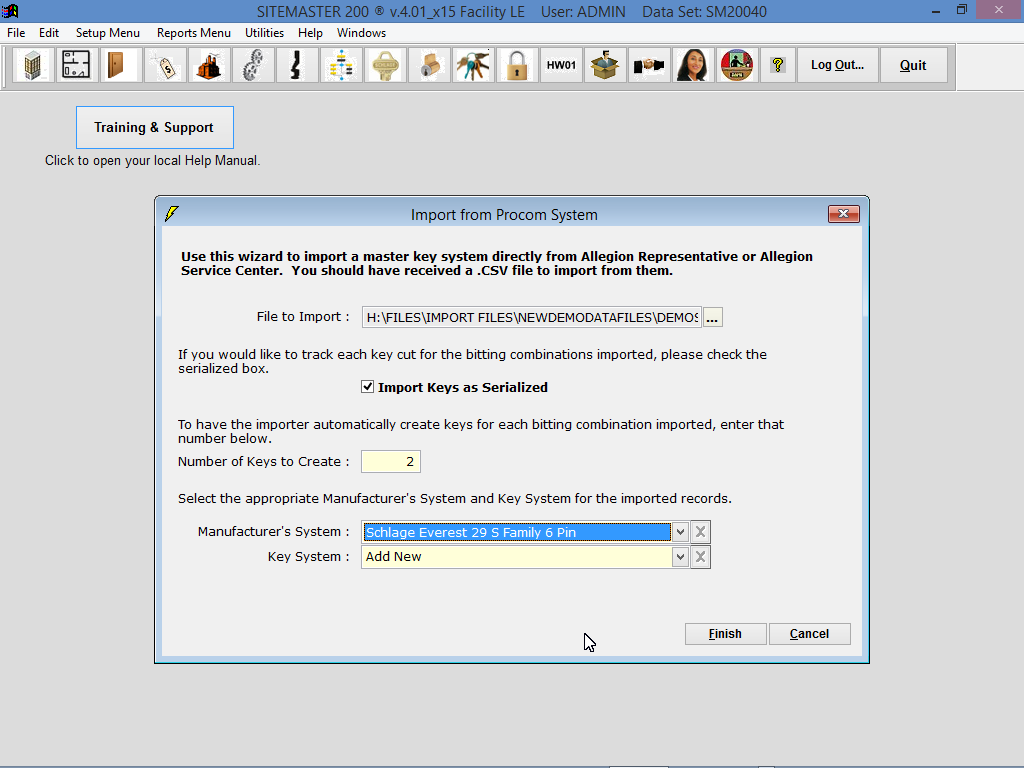

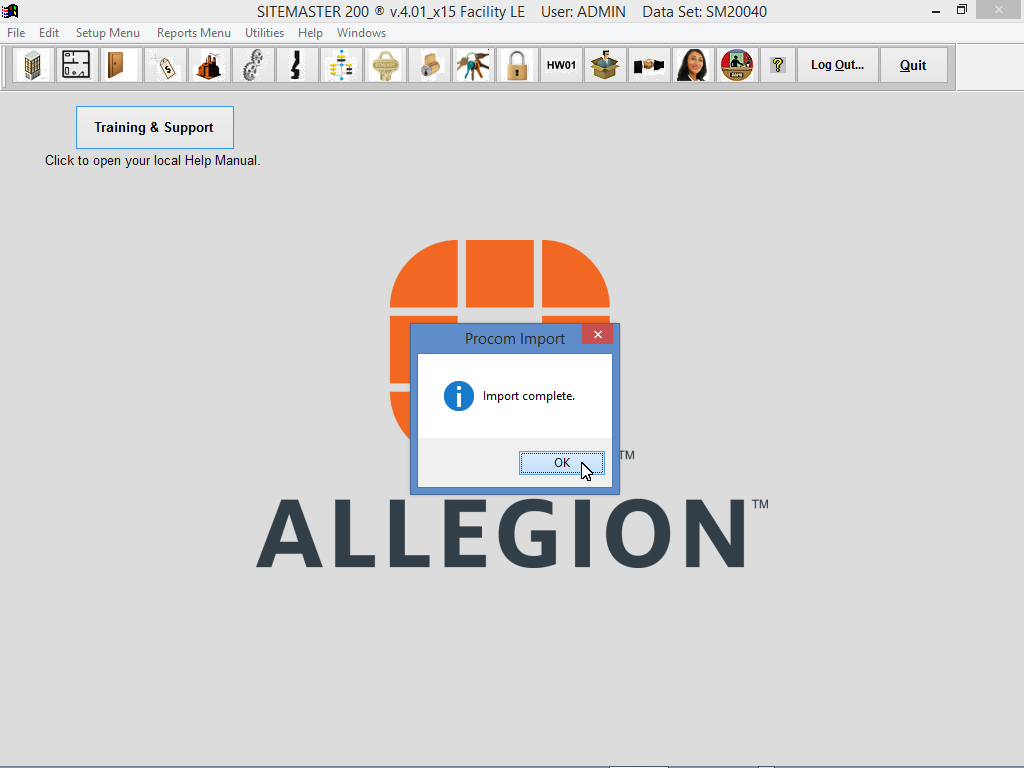

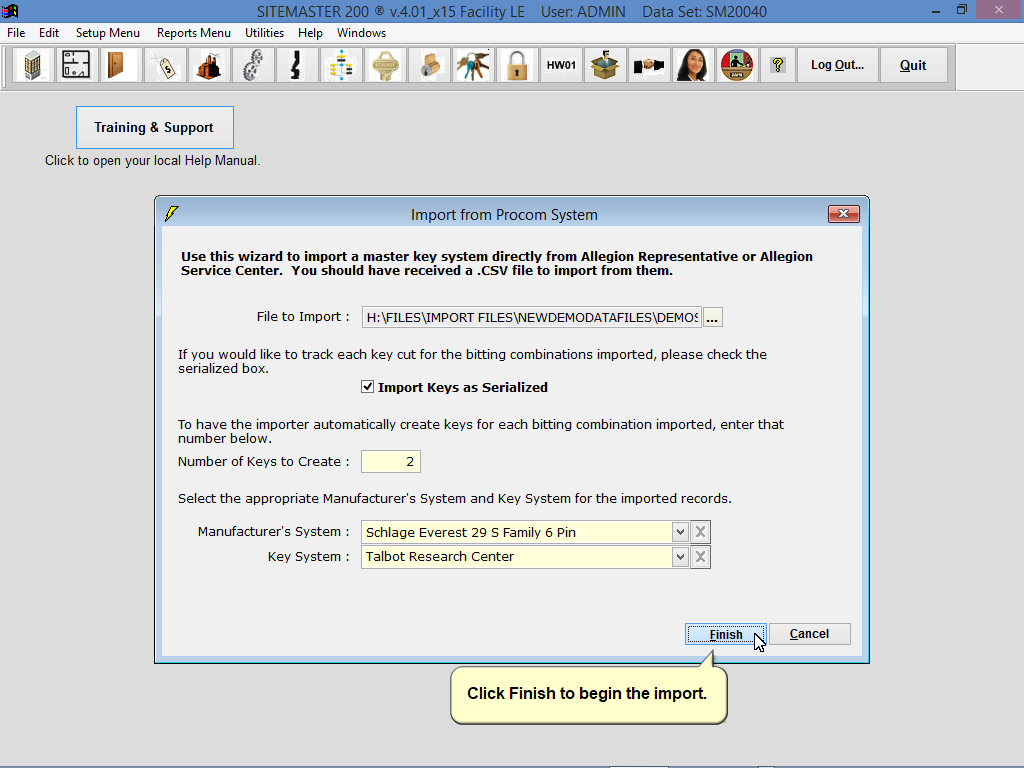

Click Finish to begin the import.

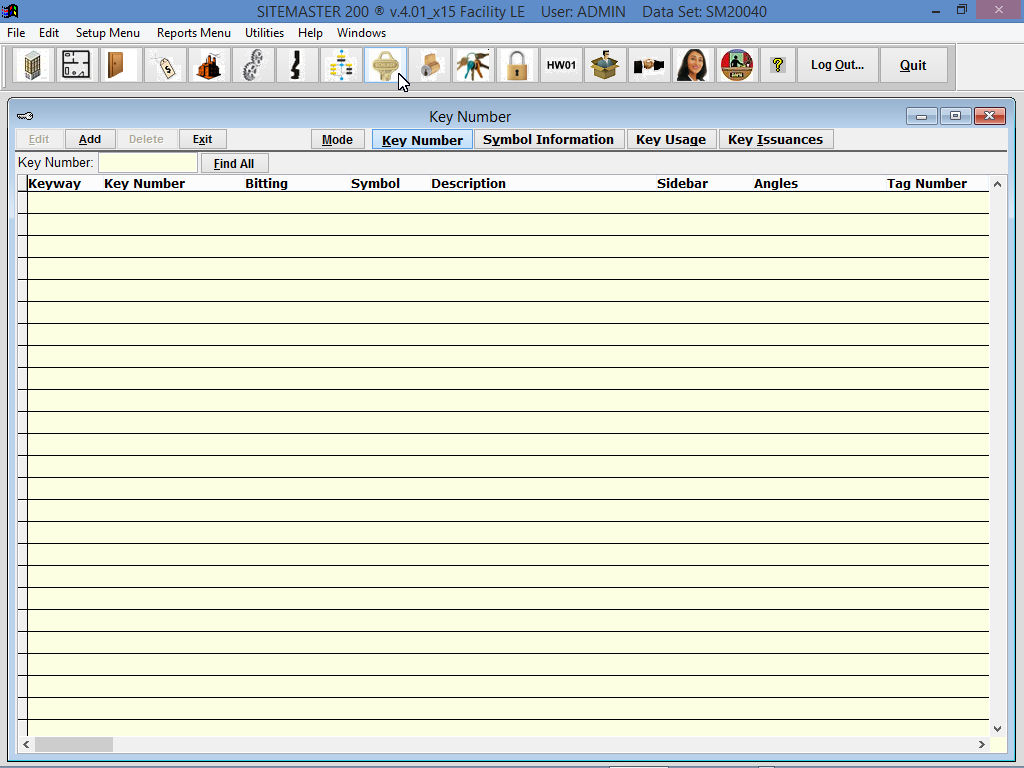

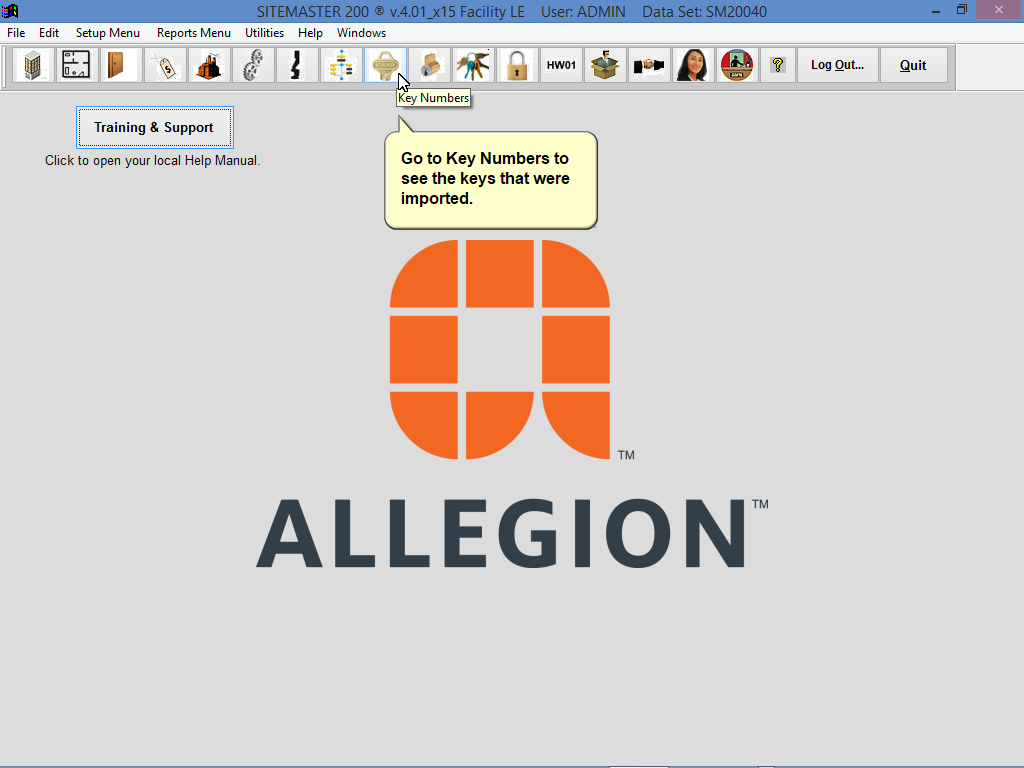

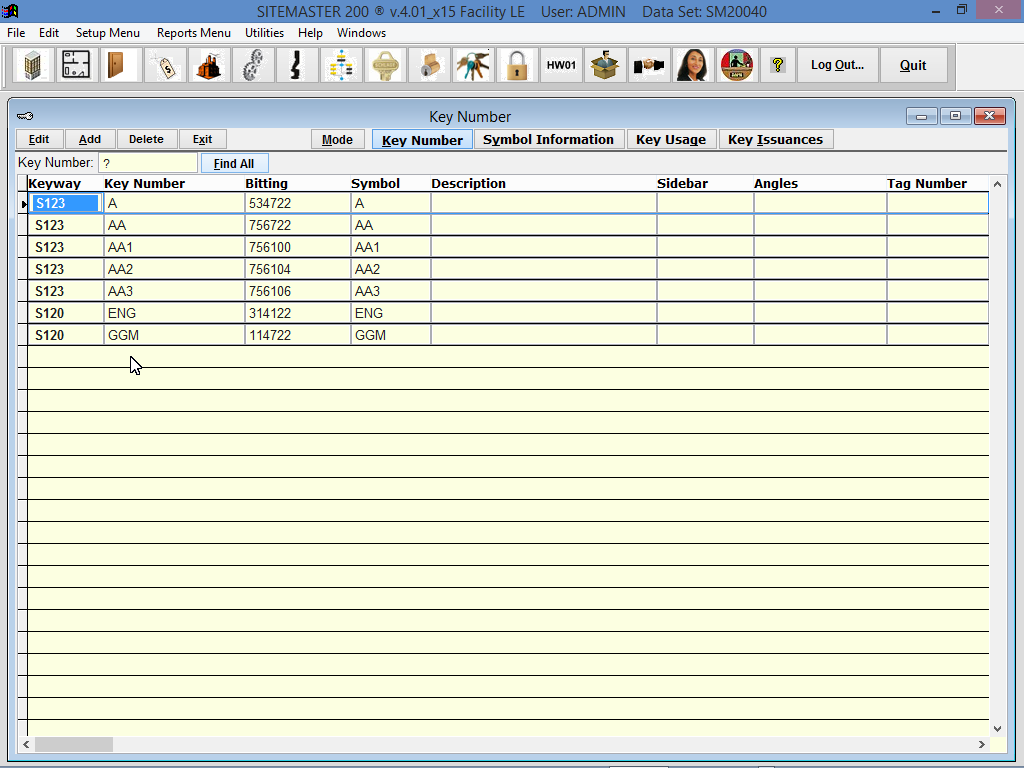

Go to Key Numbers to
see the keys that were
imported.

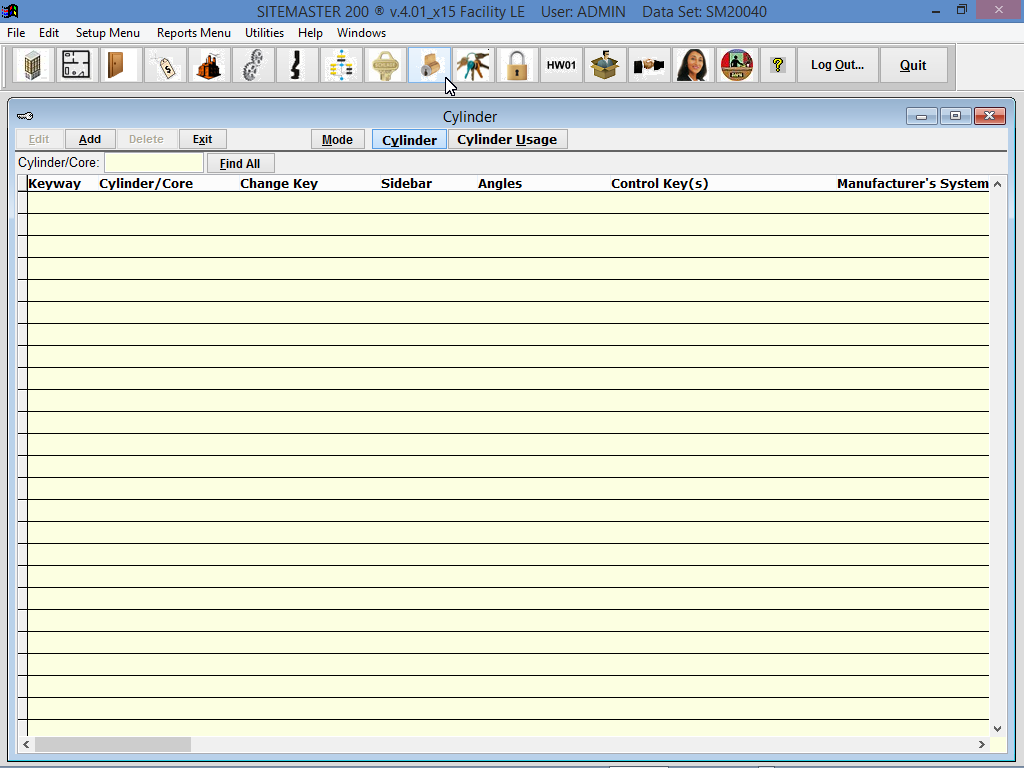

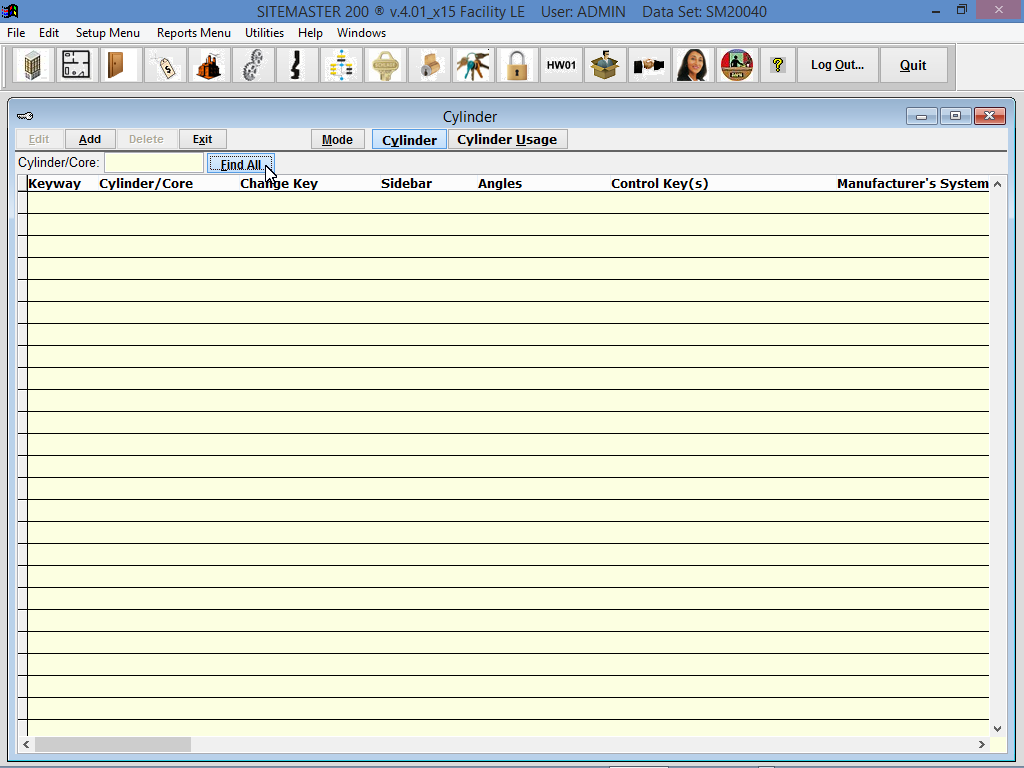

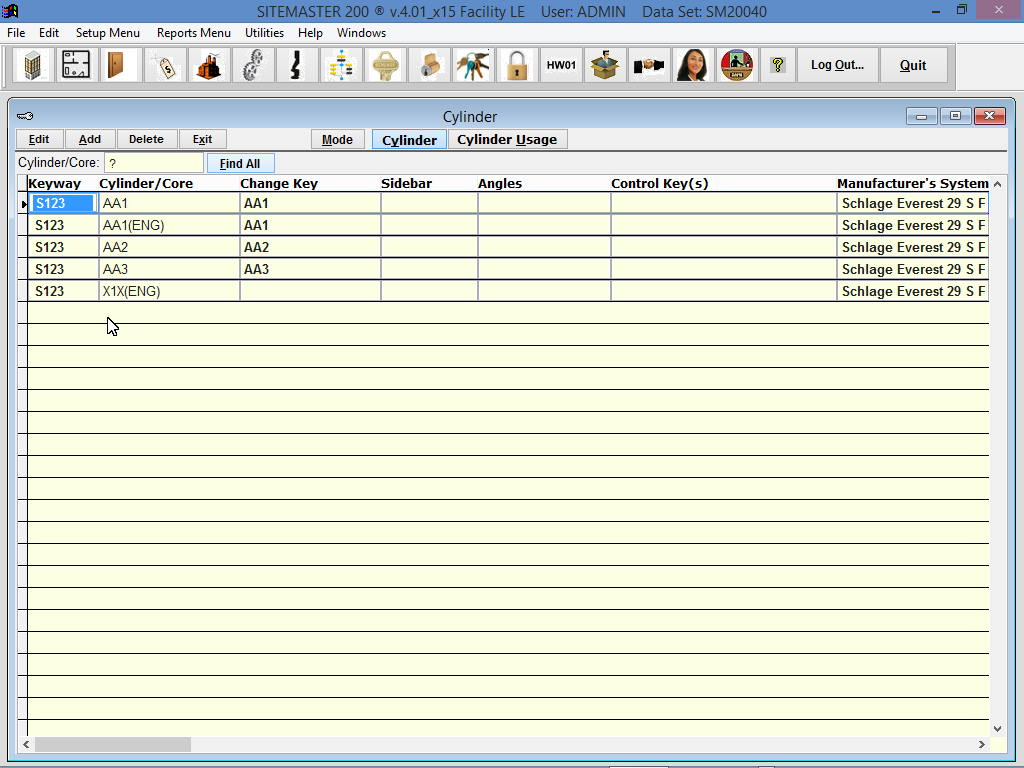

Go to Cylinders to see
the cylinder/cores that
were imported.

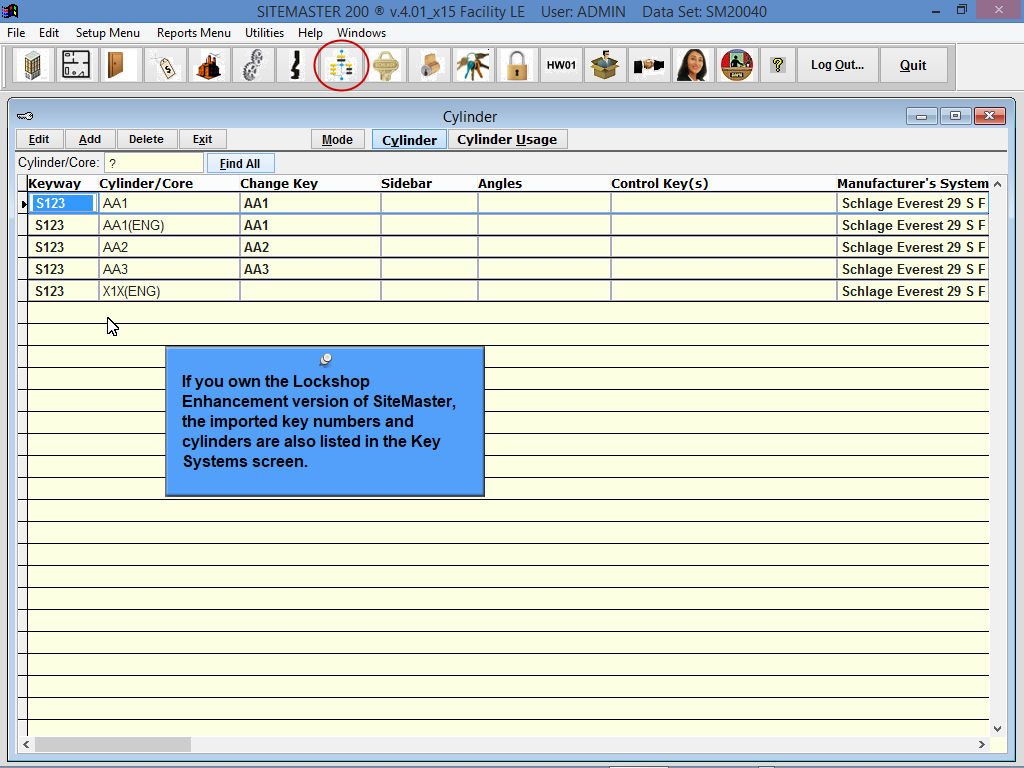

If you own the Lockshop
Enhancement version of SiteMaster,
the imported key numbers and
cylinders are also listed in the Key
Systems screen.

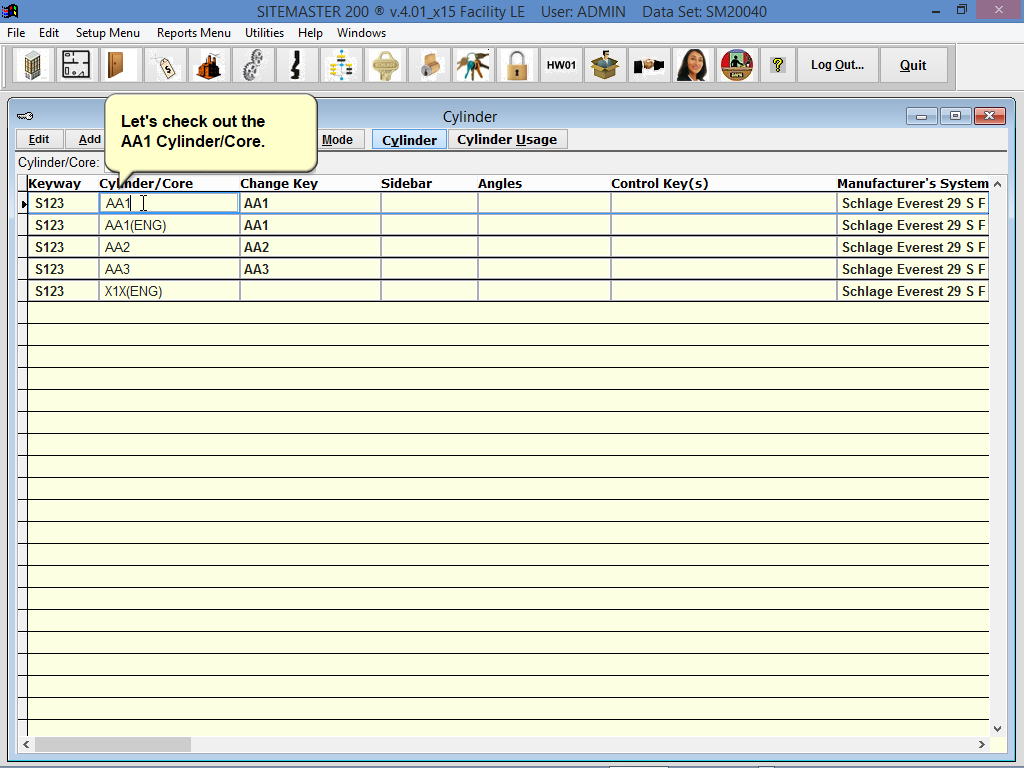

Let's check out the
AA1 Cylinder/Core.
The Cylinder/Core
record for AA1.

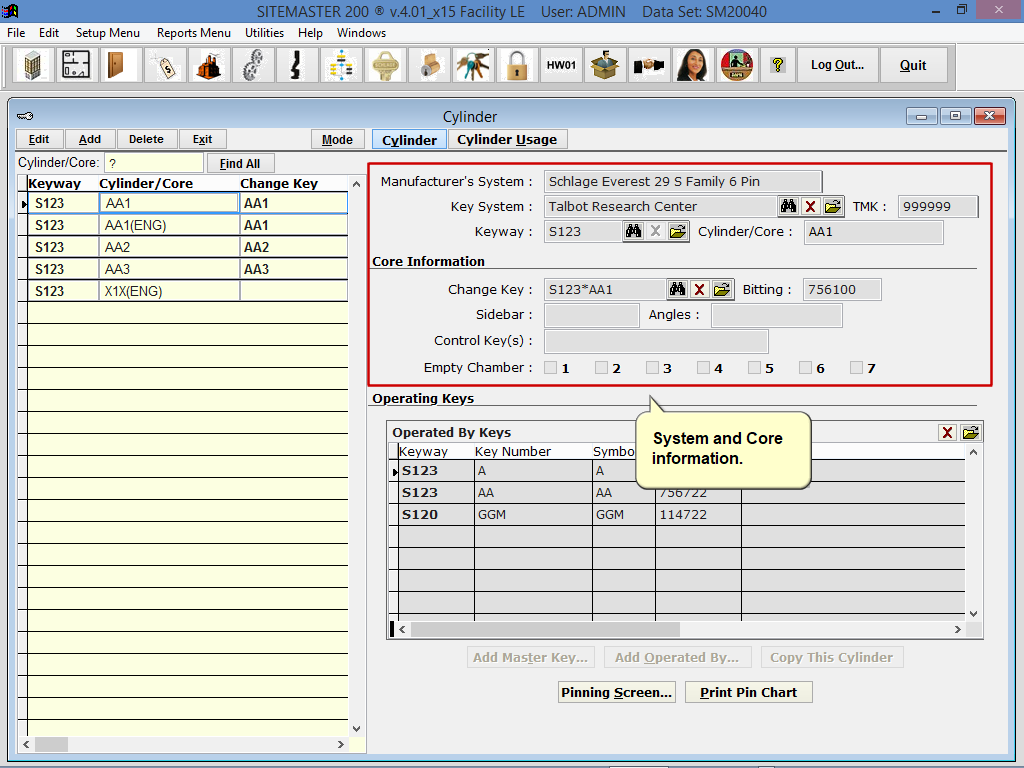

System and Core
information.

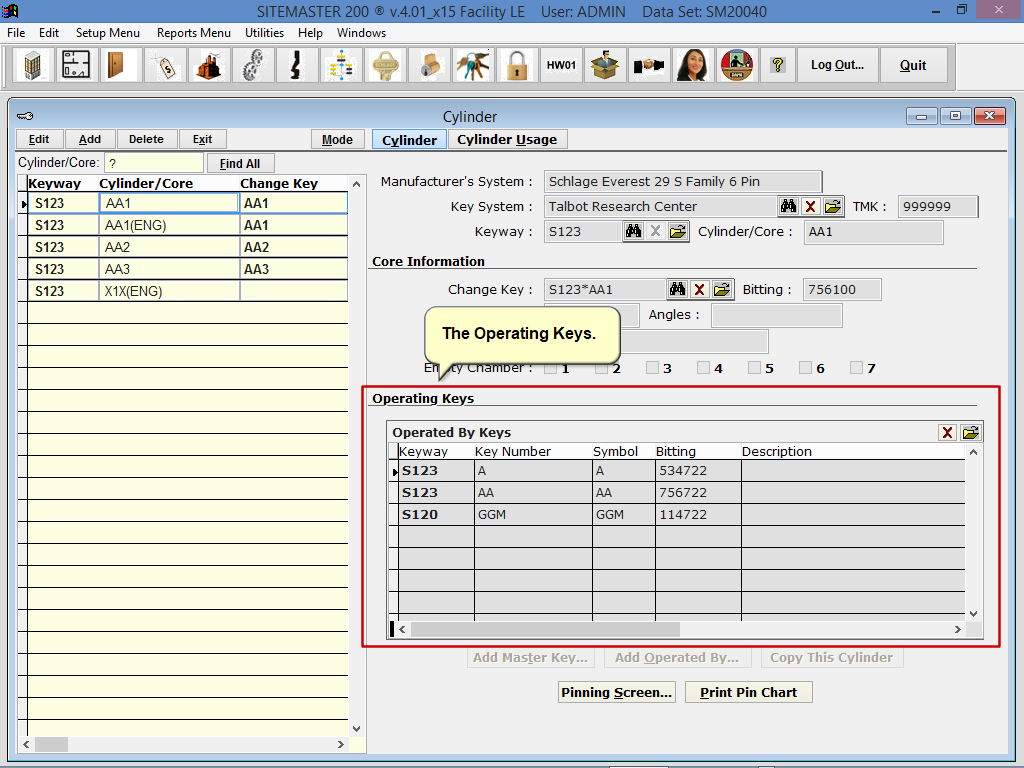

The Operating Keys.

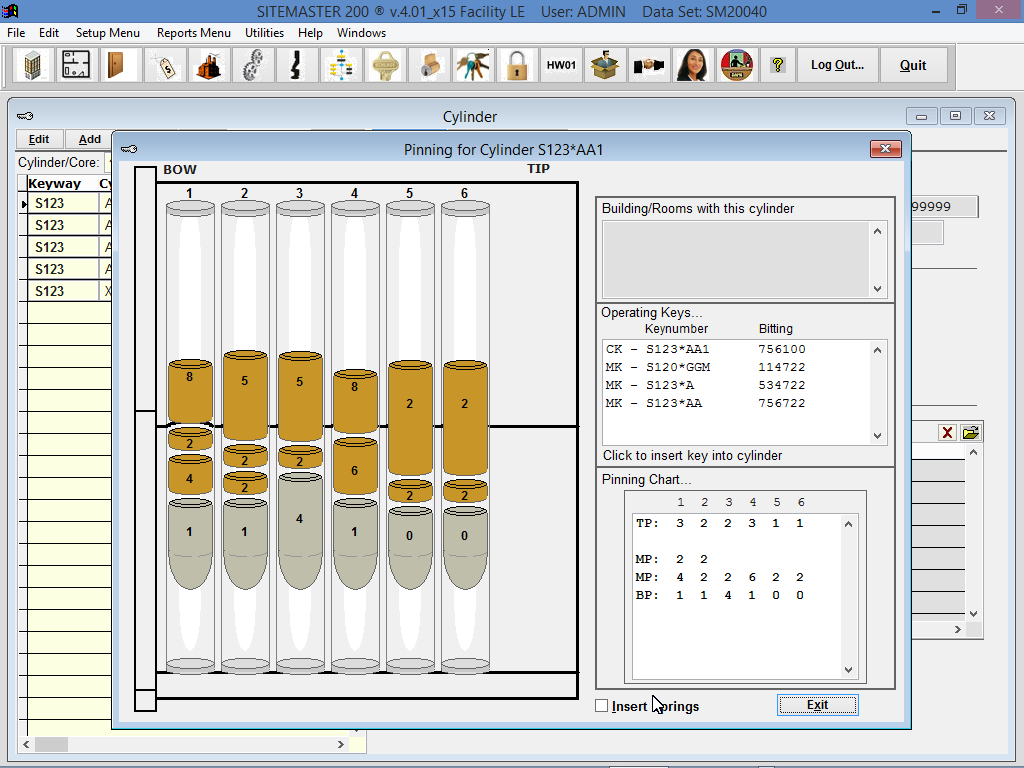

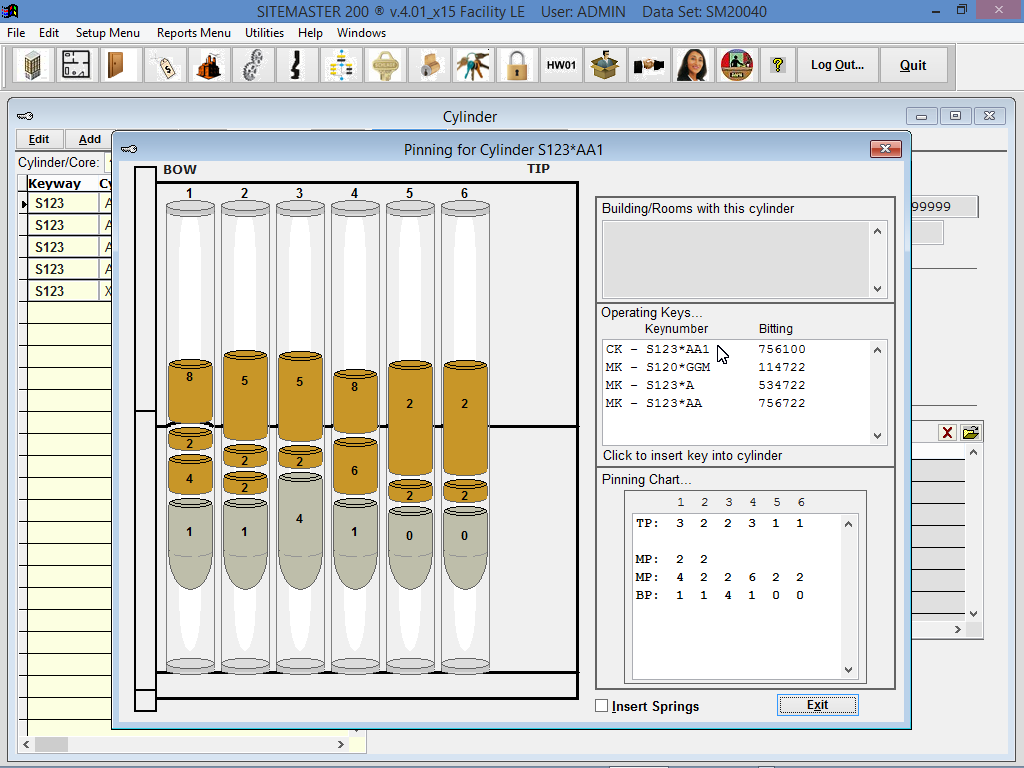

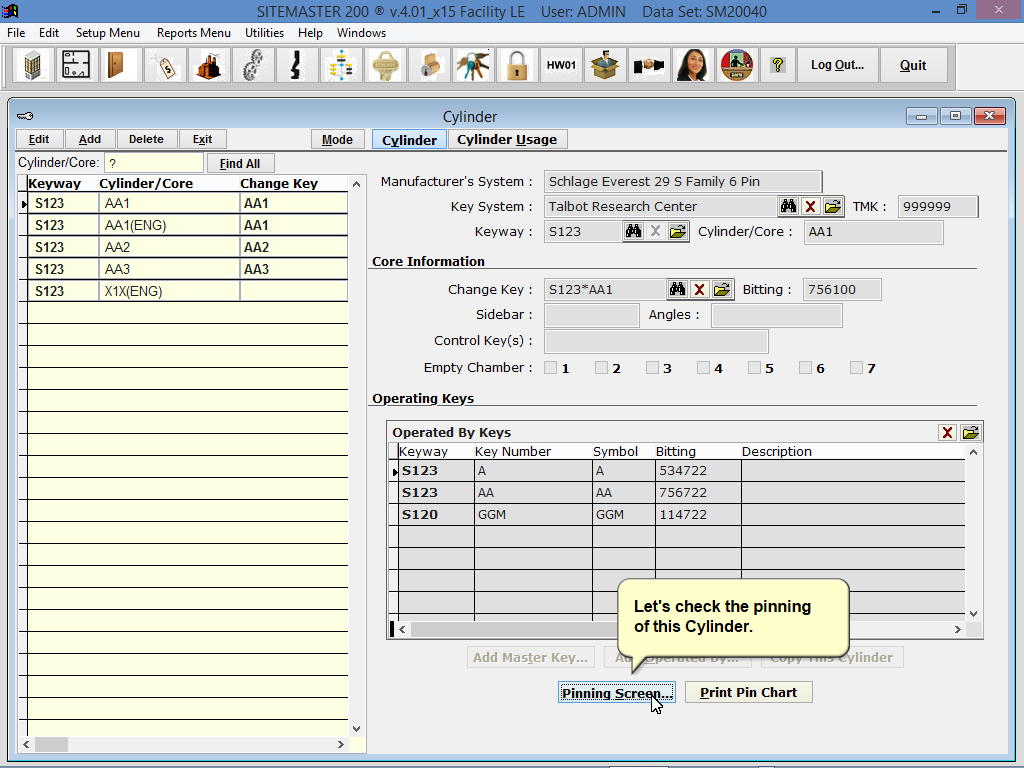

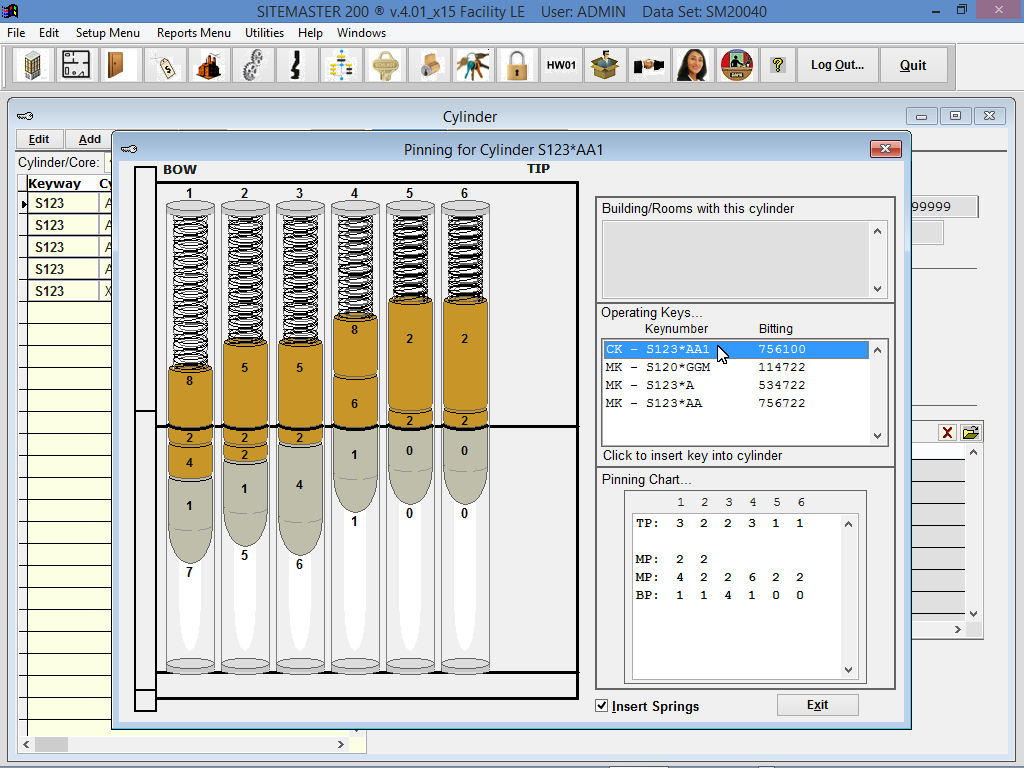

Let's check the pinning
of this Cylinder.

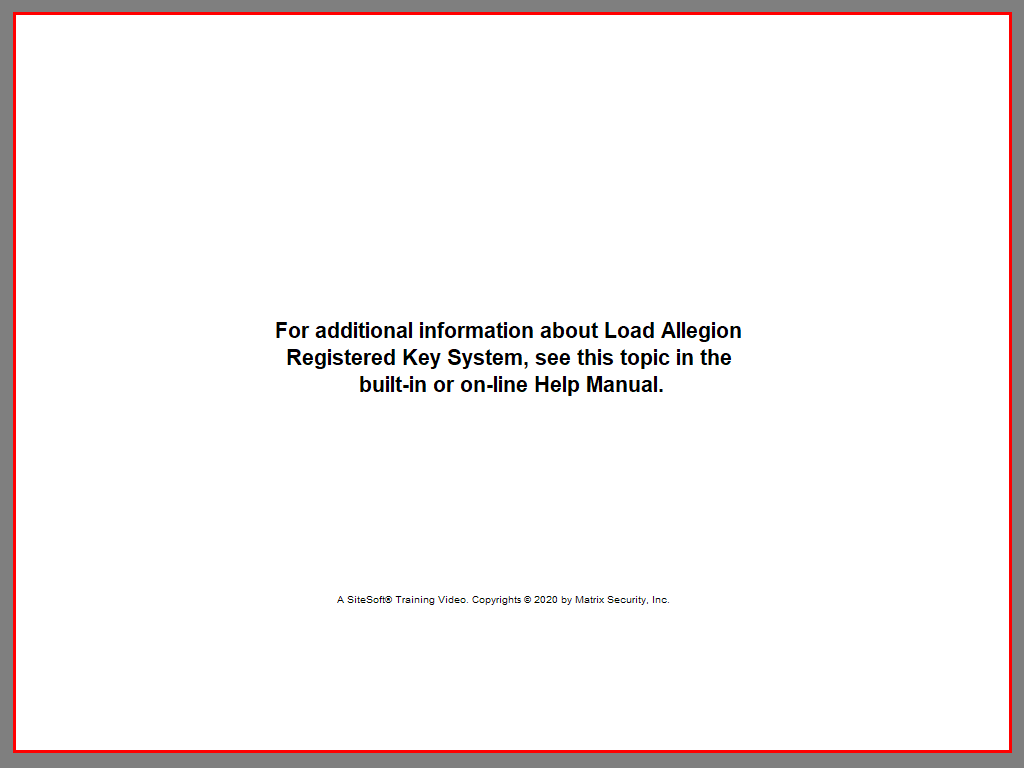

For additional information about Load Allegion
Registered Key System, see this topic in the
built-in or on-line Help Manual.
A SiteSoft
®
Training Video. Copyrights © 2020 by Matrix Security, Inc.
